CS98000

Features:

 ·Powerful Dual 32-bit RISCs >160 MIPS
 ·Software based on popular RTOS, C/C++
 ·MPEG video decoder supports DVD, VCD, VCD 3.0, and SVCD standards
 ·Video input with Picture-in-Picture and zoom
 ·8-bit multi-region OSD w/vertical flicker filter
 ·Universal subpicture unit for DVD and SVCD
 ·PAL<->NTSC Scaling and Transcoding
 ·Supports SDRAM and FLASH memories
 ·Powerful 32-bit Audio DSP >80 MIPS
 ·Decodes: AC-3, DTS, MPEG Stereo
 ·Plays MP3 CDs
 ·Karaoke echo mix and pitch shift
 ·Optional 3-D Virtual, bass & treble control
 ·Up to 8-channel PCM output
 ·IEC-60958/61937 Out: AC-3, DTS, MPEG
 ·Multi-Mode Serial Audio I/O: I2S & AC-Link
 ·AV Bus or ATAPI interface or DVD/CD/HD
 ·GPIO support for all common sub-circuits

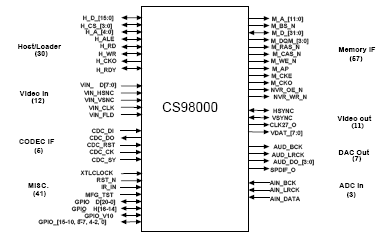

Pinout




Specifications

Symbol	Description	Min.	Max.	Unit
VDDIO	Power Supply Voltage on I/O ring	-0.5	4.6	Volts
VDDCORE	Power Supply Voltage on core logic and PLL	-0.5	3.6	Volts
VI	Digital Input Applied Voltage (power applied)	-0.5	5.5	Volts
II	Digital Input Forced Current	-10	10	mA
IO	Digital Output Forced Current	-50	50	mA
TSOL	Lead Soldering Temperature		260
TVSOL	Vapor Phase Soldering Temperature		235
TSTOR	Storage Temperature (no power applied)	-40	125
TAMB	Ambient Temperature (power applied)	0	70
PIO	Power consumption on I/O ring (CL = 35 pF)	-	57	mA
PCORE	Power consumption on the core logic	-	620	mA
PPLL	Power consumption on the PLL logic	-	15	mA

Description

Overall the CS98000 Crystal DVD Processor is targeted as a market specific consumer entertainment processor that empowers new product classes with the inclusion of a DVD player as a fundamental feature. You can use this integrated circuit with all the other Crystal mixed signal data converters, DSPs, and the CS98000's high quality factory firmware to rapidly conceptualize, design, and market cuttingedge Internet age products such as:
• DVD A/V Mini-Systems
• DVD Players
• DVD Receivers
• Car/SUV Entertainment Units
