CSC0103A

Features: · Low cost solution for low speed USB mouse peripheral· Built-in 65C02 8 Bit CPU - 6MHz external ceramic resonator - 3MHz internal CPU clock - 256 bytes RAM - 6 Kbytes ROM - Internal 3.3V regulator for USB pull-up resistor· USB specification compliance: - Conforms to USB specification, v...

product image

CSC0103A Picture
See larger image
SeekIC No. : 004316841 Detail

CSC0103A: Features: · Low cost solution for low speed USB mouse peripheral· Built-in 65C02 8 Bit CPU - 6MHz external ceramic resonator - 3MHz internal CPU clock - 256 bytes RAM - 6 Kbytes ROM - Internal 3.3V ...

CSC0103A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CSC0103A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low cost solution for low speed USB mouse peripheral
· Built-in 65C02 8 Bit CPU
    - 6MHz external ceramic resonator
    - 3MHz internal CPU clock
    - 256 bytes RAM
    - 6 Kbytes ROM
    - Internal 3.3V regulator for USB pull-up resistor
· USB specification compliance:
    - Conforms to USB specification, version 1.1
    - Conforms to USB HID specification, version 1.1
    - Supports 1 low speed device address and 3 endpoints
    - 8 bytes FIFO for each endpoint
    - Integrated USB transceiver
    - Build in 3.3V regulator
· Configurable GPIO ports
    - Real world interface without external components
    - 11/10 general purpose I/O pins
    - Port0 is 3 bit I/O with each pin supports high impedance or 20K ohm internal pull up
    - Port1 is 5 bit I/O with 20K ohm pull up resistor
    - Port2 is 3 bit I/O with 20K ohm pull up resistor and maskable interrupt mechanism
    - Dedicated LED pins for direct LED driving capability ( 20 pins package or dice only )
· Built-in power-on reset & watchdog timer reset
· One 8 bits timer
· Advanced and cost-down version of CSC0103
· 20-pin PDIP/SOIC, 18-pin PDIP package and dice


Pinout

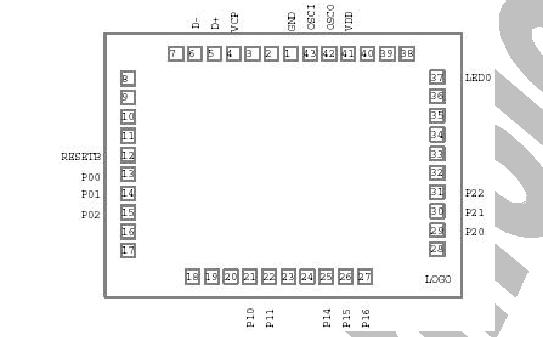

Connection Diagram


Description

All Rights Reserved.

Manual Rev. 1.20: February 27, 2002 with document number R_CSC0103A_120

The information CSC0103A in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

This document contains proprietary information CSC0103A protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
