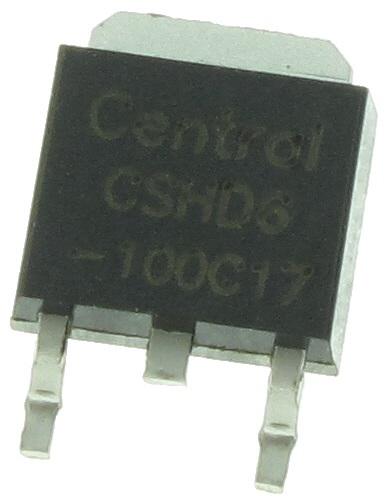

CSHD6-100C Product Image

CSH Series Datasheet download

Five Points

Part Number: CSHD6-100C









Description: The CENTRAL SEMICONDUCTOR CSHD6-100C is a Silicon Schottky Rectifier designed for surface mount high voltage applications requiring a low ...


Urgent Purchase

CSHD6-100C General Description


The CENTRAL SEMICONDUCTOR CSHD6-100C is a Silicon Schottky Rectifier designed for surface mount high voltage applications requiring a low forward voltage drop.

CSHD6-100C Maximum Ratings


SYMBOL
UNITS
Peak Repetitive Reverse Voltage
VRRM
100
V
Average Rectified Forward Current (TC=120°C)
IO
6.0
A
Peak Forward Surge Current (tp=10ms)
IFSM
50
A
Peak Repetitive Reverse Surge Current (tp=2s)
IRRM
1.0
A
Critical Rate of Rise of Reverse Voltage
dV/dt
10,000
V/s
Operating and Storage
Junction Temperature
TJ, Tstg
-65 to +150
°C
Thermal Resistance
QJC
3.5
°C/W

CSHD6-100C Connection Diagram

CSHD6-100C Connection Diagram
