Part Number: CSL13003











Urgent Purchase

CSL13003 Maximum Ratings

DESCRIPTION
Symbol
Value
Unit
Collector Base Voltage
VCBO
600
V
Collector Emitter (sus)Voltage
VCEO
400
V
Emitter Base Voltage
VEBO
9.0
V
Collector Current Continuous
Peak
IC
**ICM
1.5
3.0
A
A
Power Dissipation @ Ta=25ºC
Derate Above 25ºC
PC
1.1
8.8
W
mW/ ºC
Power Dissipation @ TLead=25ºC
Derate Above 25ºC
PD
2.0
16
W
mW/ ºC
Operating And Storage Junction Temperature
Range
Tj, Tstg
- 65 to +150
ºC

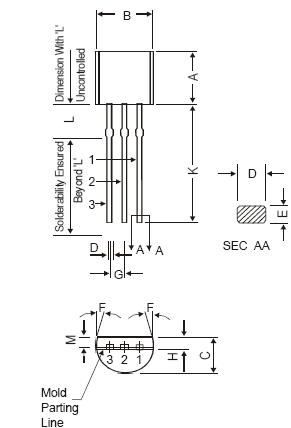

CSL13003 Connection Diagram

CSL13003 Connection Diagram

CSL13003 datasheet

CSL13003
PDF/DataSheet Download

  • Datasheet: CSL13003
  • File Size: 86771 KB
  • Manufacturer: CDIL [Continental Device India Limited]
  • Click here to Download

Find CSL13003 Suppliers

  • ·CSL13003A
  • CDIL [Continental Device India Limited]
  • NPN SILICON PLANAR EPITAXIAL, HIGH SPEED, HIGH VOLTAGE SWITCHING TRANSISTOR
