Purchase CT30VS-8, In-stock CT30VS-8 From SeekIC.
Package Cooled:TO
- Table of contents:
CT30VS-8
-
Suppliers
DataSheet
General Description
CT30VS-8 Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| VCES | Collector-emitter |
VGE = 0V |
400 |
V |
| VGES | Gate-emitter voltage |
VCE = 0V, See notice 4 |
±30 |
V |
| VGEM | Peak gate-emitter voltage |
VCE = 0V, tw = 0.5s |
±40 |
V |
| ICM | Collector current (Pulsed) |
See figure 1 |
180 |
A |
| Tj | Junction temperature |
40 ~ +150 |
°C | |
|
Tstg |
Storage temperature |
40 ~ +150 |
°C |
CT30VS-8 Typical Application
Strobe Flasher.

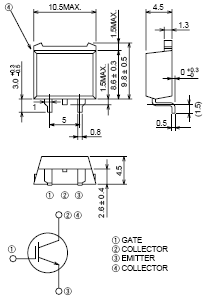

CT30VS-8 Connection Diagram
CT30VS-8
PDF/DataSheet Download
- Datasheet: CT30VS-8
- File Size: 25164 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
