Product Details

Description



Features:

· Wide Bandwidth Switches . . . . . . . . 0.9 x DC @ 100MHz
· High OFF Isolation. . . . . . . . . . . . . . . . . 66 dB @ 100MHz
· Low Channel-to-Channel Crosstalk. . . -80 dB @ 10MHz
· TTL Compatible
· Low ON Resistance
· High Speed
· Low Capaciatance


Application

· Glitch-Free Analog Switches
· RF & Video Switches
· Track-and-Hold Switches
· Sample-and-Hold Switches
· High Speed Data Routing


Pinout

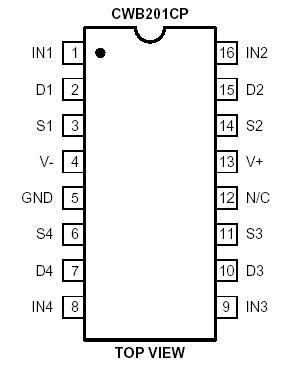

Connection Diagram


Specifications

V- Negative Supply Voltage . . . . . . . . . . . . . . . . . .. -20V
V+ Positive Supply Voltage . . . . . . . . . . . . . .   . . . +20V
VIN Control Input Voltage Range . . . . . . . . . .. V+ +0.3V
V- -0.3V
IL Continuous Current, any Pin except S or D. . .  . 20mA
IS Continuous Current, S or D . . . . . . . . . . . . . . . . 30mA
IS Peak Pulsed Current, S or D, 80msec, 1%,
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90mA
TJ Junction Temperature Range. . . . . . . . . -55 to +125
TS Storage Temperature Range . . . . . . . . -55 to +125
PD Power Dissipation (derate at 5.5mW/ ,
above +85). . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW


Description

Designed for RF and Video Switching the CWB201 is manufactured using Calogic's high speed CMOS combined with DMOS transistors in a monolithic design resulting in superior performance characteristics. This quad SPST switch array has extensive applications where high frequency video, audio or digital signals are switched or routed. The CWB201 is TTL compatible which is of great benefit to to designs that require constant logic switching over a wide range of supply voltages and temperature without a separate power supply.
