CWB211

Features: · Ultra Low Leakage. . . . . . . . . . . . . ID(OFF) 200pA typical · Low Capacitance . . . . . . . . . . . . . . . . . . . cd 0.3pf typical · Low ON Resistance. . . . . . . . . . . . . . . . . . . . 40 W typical · TTL CompatibleApplication· Glitch-Free Analog Switches · RF & Video Sw...

product image

CWB211 Picture
See larger image
SeekIC No. : 004317610 Detail

CWB211: Features: · Ultra Low Leakage. . . . . . . . . . . . . ID(OFF) 200pA typical · Low Capacitance . . . . . . . . . . . . . . . . . . . cd 0.3pf typical · Low ON Resistance. . . . . . . . . . . . . . ....

CWB211 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CWB211
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Ultra Low Leakage. . . . . . . . . . . . . ID(OFF) 200pA typical
· Low Capacitance . . . . . . . . . . . . . . . . . . . cd 0.3pf typical
· Low ON Resistance. . . . . . . . . . . . . . . . . . . . 40 W typical
· TTL Compatible


Application

· Glitch-Free Analog Switches
· RF & Video Switches
· Sample-and-Hold Switches
· Communication Systems
· Disk Drives


Pinout

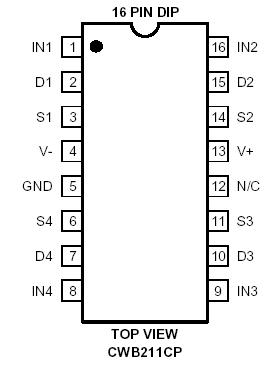

Connection Diagram


Specifications

V- Negative Supply Voltage . . . . . . . . . . . . . . . . . . -20V
V+ Positive Supply Voltage . . . . . . . . . . . . . . . . .. . +20V
VIN Control Input Voltage Range . . . . . . . . . . V+ +0.3V
V- -0.3V
IL Continuous Current, any Pin except S or D. . . . 20mA
IS Continuous Current, S or D . . . . . . . . . . . . . . . 30mA
IS Peak Pulsed Current, S or D, 80msec, 1%,
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 90mA
TJ Junction Temperature Range. . . . . . . . .-55 to +125
TS Storage Temperature Range . . . . . . . .-55 to +125
PD Power Dissipation . . . . . . . . . . . . . . . . . . . . 500mW


Description

The Calogic CWB211 offers designers high performance at a low cost. The CWB211 is an excellent choice where capacitance and switching times are crucial. The device out performs industry standard DG211 types offering much faster switching speeds, low RDS (ON) and lower capacitance while maintaining high OFF isolation and good bandwidth.

The Calogic CWB211 is configured to be a pin for pin replacement of existing analog switches and at the same time upgrading high frequency performance. Manufactured on the Calogic proprietary low voltage CMOS combined with high speed DMOS FETs, the device is TTL compatible utilizing an on-chip reference to provide constant logic switching over a wide range of supply voltages and temperature without a separate power supply.
