• Transmitter/receiver into a single chip
• Conforms to ANSI X3T11 fibre channel standard
• PLL for a clock synthesizing and for clock recovery
• Single 3.3V power supply
• Low power consumption: 860mW (Typ.)
• 80-pin plastic package
• Comma signal detector
• Test pattern (±K28.5) generation circuit
• Loop-back circuit
• Supports data rage of 200Mbaud

Application

265.625Mbaud fibre channel

Pinout

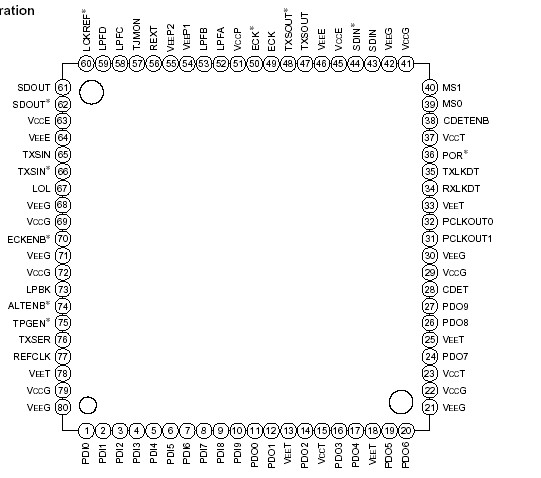

Connection Diagram

Specifications

Description	Symbol	Min.	Typ.	Max.	Unit
Power supply	V_CC	0.3		4	V
TTL DC input voltage	VI_T	0.5		5.5	V
ECL DC input voltage	VI_E	V_CC 2		V_CC	V
ECL differential input voltage	VIS_E	2		2	V
TTL output current (High level)	IOH_T	20		0	mA
TTL output current (Low level)	IOL_T	0		20	mA
ECL output current	IO_E	-30		0	mA
Operating ambient temperature	Ta	55		70
Storage temperature	Tstg	65		150

Description

The CXB1583Q is a transceiver IC with the built-in PLLs into a single chip.

For receiver, the 265.625Mbaud serial data CXB1583Q is received and it is output as a 10-bit parallel data; for transmitter, the 265.625Mbaud 10-bit parallel data is received and it is output as a serial data after conversion.
