CXD2044Q

Features: • Intra-field Y/C separation by adaptive processing• 8-bit A/D converter (1-channel)• 8-bit D/A converter (2-channel)• Four 1H delay lines• Clock 4fscApplicationY/C separation for color TVs and VCRsPinoutSpecifications Supply voltage DVDD VSS ...

product image

CXD2044Q Picture
See larger image
SeekIC No. : 004318479 Detail

CXD2044Q: Features: • Intra-field Y/C separation by adaptive processing• 8-bit A/D converter (1-channel)• 8-bit D/A converter (2-channel)• Four 1H delay lines• Clock 4fscApplicat...

CXD2044Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2044Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Intra-field Y/C separation by adaptive processing
• 8-bit A/D converter (1-channel)
• 8-bit D/A converter (2-channel)
• Four 1H delay lines
• Clock 4fsc


Application

Y/C separation for color TVs and VCRs

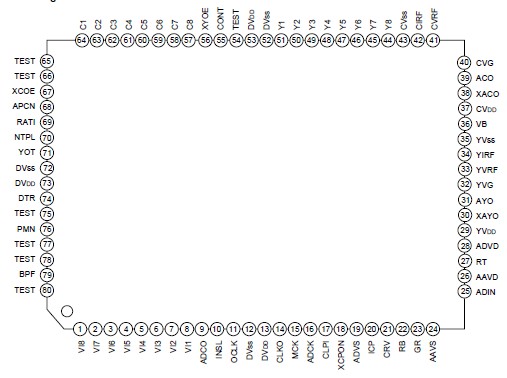

Pinout

Connection Diagram


Specifications

Supply voltage

DVDD

VSS 0.5 to +7.0

V

AAVD

VSS 0.5 to +7.0

V

ADVD

VSS 0.5 to +7.0

V

YVDD

VSS 0.5 to +7.0

V

CVDD

VSS 0.5 to +7.0

V

Input voltage

VI

VSS 0.5 to VDD + 0.5

V

Output voltage

VO

VSS 0.5 to VDD + 0.5

V

Storage temperature

Tstg

55 to +150

°C




Description

The CXD2044Q is an adaptive intra-field comb filter compatible with NTSC, PAL, PAL-M and PAL-N systems, and can provide high-precision Y/C separation with a single chip.
