CXD2597Q

Features: Digital Signal Processor (DSP) Block• Playback mode supporting CAV (Constant Angular Velocity)• Frame jitter free• 0.5´ to 4´ continuous playback possible• Allows relative rotational velocity readout• Wide capture range playback mode• Spind...

product image

CXD2597Q Picture
See larger image
SeekIC No. : 004318553 Detail

CXD2597Q: Features: Digital Signal Processor (DSP) Block• Playback mode supporting CAV (Constant Angular Velocity)• Frame jitter free• 0.5´ to 4´ continuous playback possibleR...

CXD2597Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2597Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Digital Signal Processor (DSP) Block
• Playback mode supporting CAV (Constant Angular Velocity)
• Frame jitter free
• 0.5´ to 4´ continuous playback possible
• Allows relative rotational velocity readout
• Wide capture range playback mode
• Spindle rotational velocity following method
• Supports normal-speed to 4´ speed playback
• 16K RAM
• EFM data demodulation
• Enhanced EFM frame sync signal protection
• SEC strategy-based error correction
• Subcode demodulation and Sub Q data error
detection
• Digital spindle servo
• 16-bit traverse counter
• Asymmetry correction circuit
• CPU interface on serial bus
• Error correction monitor signal, etc. output from a
new CPU interface
• Servo auto sequencer
• Digital audio interface outputs
• Digital level meter, peak meter
• CD TEXT data demodulation
Digital Servo (DSSP) Block
• Microcomputer software-based flexible servo control
• Offset cancel function for servo error signal
• Auto gain control function for servo loop
• E:F balance, focus bias adjustment functions
Digital Filter, DAC and Analog Low-Pass Filter Blocks
• DBB (digital bass boost) function
• Double-speed playback supported
• Digital de-emphasis
• Digital attenuation
• Zero detection function
• 8Fs oversampling digital filter
• S/N: 100dB or more (master clock: 384Fs, typ.)
Logical value: 109dB
• THD + N: 0.007% or less (master clock: 384Fs, typ.)
• Rejection band attenuation: 60dB or less


Application

CD players


Pinout

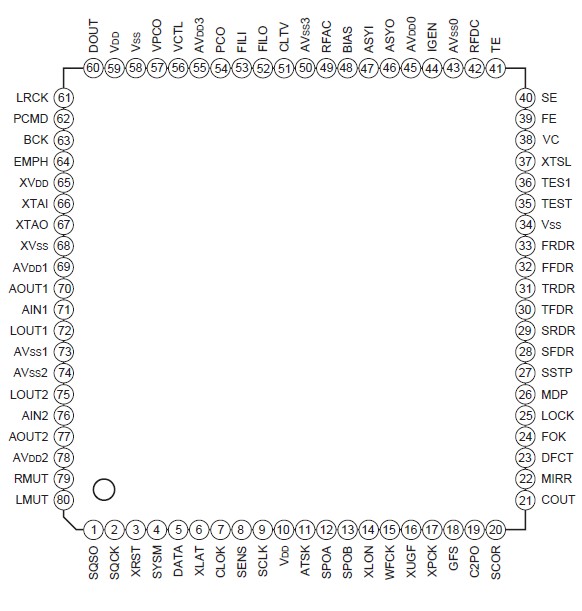

Connection Diagram


Specifications

Supply voltage

VDD

0.3 to +7.0

V

Input voltage

VI

0.3 to +7.0

V

(VSS 0.3V to VDD +0.3V)

Output voltage

VO

0.3 to +7.0

V

Storage temperature

Tstg

40 to +125

°C

Supply voltage difference

VSS AVSS 0.3 to +0.3

V

VDD AVDD 0.3 to +0.3

V



Description

The CXD2597Q is a digital signal processor LSI for CD players. This LSI incorporates a digital servo, digital filter, zero detection circuit, 1-bit DAC and analog low-pass filter on a single chip.
