Part Number: CXG1198AEQ
Description: The CXG1198AEQ is one of a range of low insertion loss, high power MMIC antenna switches for GSM/UMTS ...
- Table of contents:
CXG1198AEQ
-
Suppliers
DataSheet
General Description
CXG1198AEQ General Description
The CXG1198AEQ is one of a range of low insertion loss, high power MMIC antenna switches for GSM/UMTS dual-mode handset. The low insertion loss serves to extend the handset talk time.
The switch also contains on-chip logic circuits and built-in dual-LPF on GSM transmit paths for suppression of transmitter harmonics. The dual-LPF is mounted on the lead frame and enables the reduction of component count and simple PCB layout.
(Applications: GSM (Triple/Quad band)/UMTS (Dual band) dual-mode handset)
CXG1198AEQ Maximum Ratings
|
Bias voltage |
VDD |
7 |
V |
|
Control voltage |
Vctl |
5 |
V |
|
Operating temperature |
Topr |
30 to +90 |
°C |
|
Storage temperature |
Tstg |
65 to +150 |
°C |
CXG1198AEQ Features
Low height (1.3mm Max.)
Low insertion loss
0.90dB (Typ.) on Tx2 (1910MHz)
0.90dB (Typ.) on Rx4 (1990MHz)
0.50dB (Typ.) on TRx (1980MHz)
Built-in dual-LPF
Att 30dB (Typ.) @2fo (Tx1)
Att 30dB (Typ.) @2fo (Tx2)
3 CMOS compatible control lines
Small package size 28-pin LQFN (4.5mm * 3.2mm * 1.3mm)
Low insertion loss
0.90dB (Typ.) on Tx2 (1910MHz)
0.90dB (Typ.) on Rx4 (1990MHz)
0.50dB (Typ.) on TRx (1980MHz)
Built-in dual-LPF
Att 30dB (Typ.) @2fo (Tx1)
Att 30dB (Typ.) @2fo (Tx2)
3 CMOS compatible control lines
Small package size 28-pin LQFN (4.5mm * 3.2mm * 1.3mm)

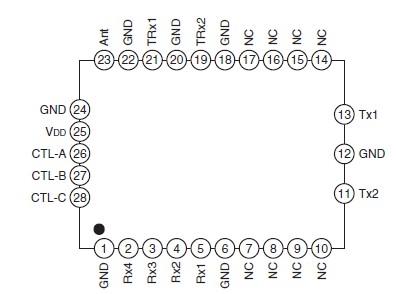

CXG1198AEQ Connection Diagram
CXG1198AEQ
PDF/DataSheet Download
- Datasheet: CXG1198AEQ
- File Size: 147157 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
