Part Number: CXP1042Q







D/C: 07+

Description: The CXP1042Q is a 4-bit single chip microcomputer based on the SPC500 series. It incorporates programs in firmware for ...


Urgent Purchase

CXP1042Q General Description


The CXP1042Q is a 4-bit single chip microcomputer based on the SPC500 series. It incorporates programs in firmware for CD operations. It can be connected directly to the CDL-500 series of LSIs for CD players, and can directly drive LCDs, in addition to other features. It can be employed in a wide range of equipment, from deck-type CD players to radio cassettes and portable systems.

CXP1042Q Maximum Ratings

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
LCD bias voltage VLC1, VLC2, VLC3 0.3 to +7.0*1
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
High level output current IOH 5 mA General purpose port 1 pins*2
High level total output current IOH 50 mA Total for all output pins
Low level output current IOL 15 mA General purpose port 1 pins*2
Low level total output current IOL 100 mA Total for all output pins
Operating temperature Topr

20 to +75

 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW QIP

CXP1042Q Features

• Can be connected directly to CDL-500 series LSIs for CD use
• Up to 16 keys can be connected directly; expansion of functions through addition of keys is possible

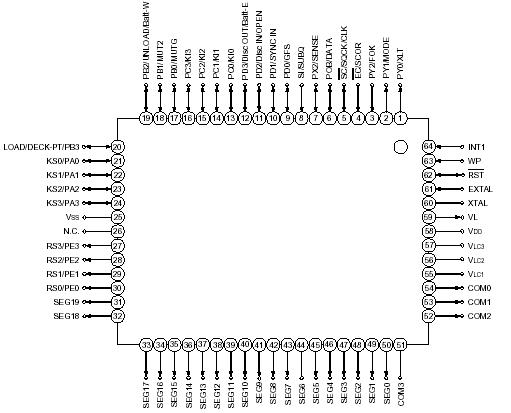

CXP1042Q Connection Diagram

CXP1042Q Connection Diagram

CXP1042Q datasheet

CXP1042Q
PDF/DataSheet Download
