Purchase CXP5086, In-stock CXP5086 From SeekIC.
Part Number: CXP5086
Description: The CXP5084/5086 is a CMOS 4-bit microcomputer which consists of 4-bit CPU, ROM, RAM, I/O port,8-bit timer, 8-bit timer...
- Table of contents:
CXP5086
-
Suppliers
DataSheet
General Description
CXP5086 General Description
The CXP5084/5086 is a CMOS 4-bit microcomputer which consists of 4-bit CPU, ROM, RAM, I/O port,8-bit timer, 8-bit timer/counter, 18-bit time base timer,8-bit serial I/O, vector interruption, power on reset function and a liquid crystal displayer (LCD) controller/driver. They are integrated into a single clip with the standby function etc. which are to be operated at low power consumption.
CXP5086 Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +7.0 | V | |
| LCD bias voltage | VLC1, VLC2, VLC3 | 0.3 to +7.0*1 | V | |
| Input voltage | VIN | 0.3 to +7.0*1 | V | |
| Output voltage | VOUT | 0.3 to +7.0*1 | V | |
| High level output current | IOH | 5 | mA | General purpose port*2: per pin |
| High level total output current | IOH | 50 | mA | Entire pins total |
| Low level output current | IOL | 15 | mA | General purpose port*2: per pin |
| Low level total output current | IOL | mA | Entire pins total | |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 1000 | mW | SDIP |
| 600 | mW | QFP |
CXP5086 Features
• Instruction cycle 3.8µs/4.19MHz 1.9µs/4.19MHz (High speed version)
• ROM capacity 4096 *8 bits (CXP5084) 6144*8 bits (CXP5086)
• RAM capacity 400 *4 bits (Including stack, display area)
• 32 general purpose I/O ports
• LCD controller/driver (Direct drive possible)
- Optional specification of 24, 20 or 16 segment outputs
- 1/2, 1/3, 1/4 duty selectable through program
- 1/3 bias
• 2 external interruption input pins
• 8-bit/4-bit variable serial I/O
• 8-bit timer, 8-bit timer/event counter and 18-bit time
base timer are independently controllable
• Arithmetic and logical operations possible between the entire RAM area, I/O area and the accumulator by means of memory mapped I/O
• Reference to the entire ROM area is possible with the table look-up instruction
• 2 types of power down modes: sleep and stop
• Power on reset circuit (Mask option)
• Available option of either crystal oscillation or CR oscillation (mask option) types for the oscillation circuit
• 64-pin plastic SDIP/QFP available
• Piggyback package (CXP5080) available
• ROM capacity 4096 *8 bits (CXP5084) 6144*8 bits (CXP5086)
• RAM capacity 400 *4 bits (Including stack, display area)
• 32 general purpose I/O ports
• LCD controller/driver (Direct drive possible)
- Optional specification of 24, 20 or 16 segment outputs
- 1/2, 1/3, 1/4 duty selectable through program
- 1/3 bias
• 2 external interruption input pins
• 8-bit/4-bit variable serial I/O
• 8-bit timer, 8-bit timer/event counter and 18-bit time
base timer are independently controllable
• Arithmetic and logical operations possible between the entire RAM area, I/O area and the accumulator by means of memory mapped I/O
• Reference to the entire ROM area is possible with the table look-up instruction
• 2 types of power down modes: sleep and stop
• Power on reset circuit (Mask option)
• Available option of either crystal oscillation or CR oscillation (mask option) types for the oscillation circuit
• 64-pin plastic SDIP/QFP available
• Piggyback package (CXP5080) available

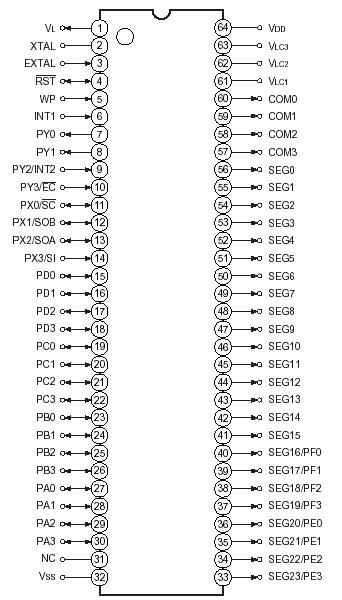

CXP5086 Connection Diagram
CXP5086
