Product Details

Description



Features:

• Wide-range instruction system (213 instructions) to cover various types of data.
- 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 8µs at 500kHz 122µs at 32kHz operation
• Incorporated ROM capacity 20Kbytes (CXP83120A) 24Kbytes (CXP83124A)
• Incorporated RAM capacity 644bytes (includes LCD display data area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface 8-bit, 8-stage FIFO incorporated (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock synchronized type, 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer, 16-bit capture timer/counter, 32kHz timer/counter
- LCD controller/driver Maximum 160 segment display possible (during 1/4 duty) 4 common output, 40 segment output Display method static, 1/2, 1/3, 1/4 duty Bias method 1/2, 1/3 bias
- Remote control reception circuit 8-bit pulse measuring counter, 6-stage FIFO
- PWM output circuit 14 bits, 1 channel
• Interruption 15 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluation chip CXP83200A 100-pin ceramic QFP/LQFP



Pinout

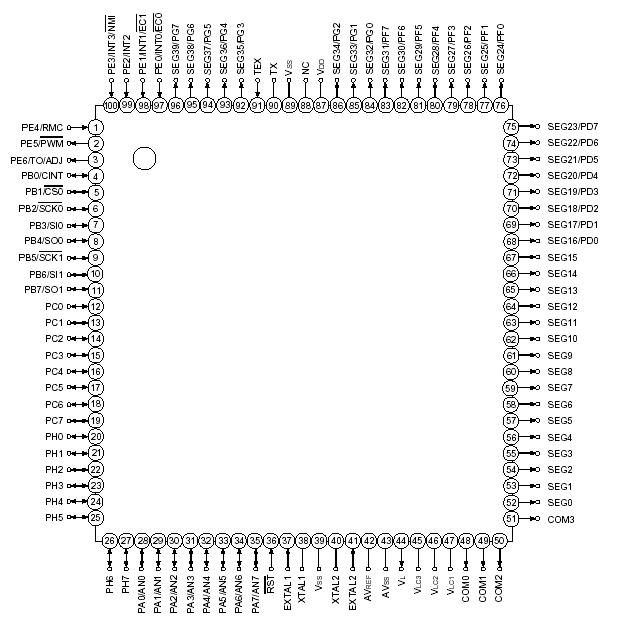

  Connection Diagram


Specifications

Item Symbol Rating Unit Remarks
Supply voltage VDD 0.3 to +7.0 V
AVSS 0.3 to +0.3 V
LCD bias voltage VLC1,VLC2,VLC3 0.3 to +7.0*1 V
Input voltage VIN 0.3 to +7.0*1 V
Output voltage VOUT 0.3 to +7.0*1 V
High level output current IOH 5 mA Output per pin
High level total output current IOH 50 mA Total for all output pins
Low level output current IOL 15 mA Value per pin, excluding high current
output pins
IOLC 20 mA Value per pin for high current output pins*2
Low level total output current IOL 100 mA Total for all output pins
Operating temperature Topr 10 to +75 °C
Storage temperature Tstg 55 to +150 °C
Allowable power dissipation PD 600 mW QFP package
380 LQFP package



Description

The CXP83124A is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, 32kHz timer/counter, capture timer counter, LCD controller/driver, remote control reception circuit and 14-bit PWM output besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port.

The CXP83124A also provides a sleep/stop function that enables lower power consumption.
