Product Details

Description



Features:

• Wide-range instruction system (213 instructions) to cover various types of data
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation
• Applicable EPROM LCC type 27C128, LCC type 27C256 (Maximum 24K bytes are available.)
• Incorporated RAM capacity 624 bytes
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock sync type, 1 channel
- Timer 8-bit timer 8-bit timer/counter 19-bit time base timer 16-bit capture timer/counter
- Remote control reception circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
- PWM output 14 bits, 1 channel
• Interruption 14 factors, 14 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 64-pin ceramic SDIP


Pinout

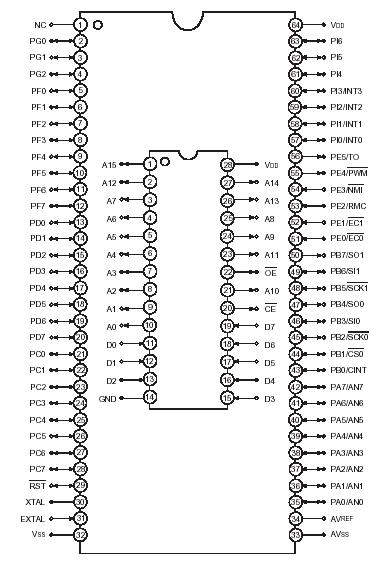

Connection Diagram


Description

The CXP84200 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP84220/84224.
