CXP852P32A

Features:

• A wide instruction set (213 instructions) to cover various types of data
- 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle During operation 1µs at 4MHz
• Incorporated PROM capacity 32K bytes (For program)
3K bytes (for OSD)
• Incorporated RAM capacity 448 bytes
• Peripheral functions
- On-screen display function 12*16 dots, 128 types
4 Iines of 21 characters (5 or more lines possible) , double scanning mode supported, jitter elimination circuit
- I²C bus interface
- PWM output 14 bits, 1 channel 6 bits, 8 channels
- Remote control reception circuit 8-bit pulse measuring counter, 6-stage FIFO
- A/D converter 4 bits, 4 channels, successive approximation method (Conversion time of 40µs at 4MHz)
- HSYNC counter
- Power supply frequency counter
- Watchdog timer
- Serial I/O 8-bit clock synchronization
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer
• Interruption 14 factors, 14 vectors, multi-interrupt possible
• Standby mode Sleep

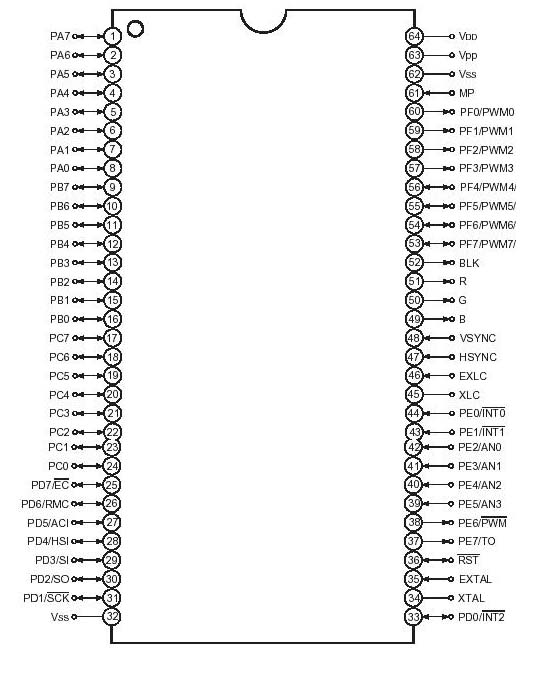

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	Vpp	0.3 to +13.0	V	Incorporated PROM
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
Medium voltage tolerance output voltage	VOUTP	0.3 to +15.0	V	Pins PF0 to PF3
High level output current	IOH	5	mA
High level total output current	IOH	50	mA	Total for all output pins
Low level output current	IOL	15	mA	General purpose port 1 pins*2
	IOLC	20	mA	High current port 1 pins*3
Low level total output current	IOL	130	mA	Total for all output pins
Operating temperature	Topr	10 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	1000	mW	SDIP
		600		QFP

Description

The CXP852P32A is highly integrated microcomputers composed of 8-bit CPU, PROM, RAM, and I/O ports. This IC featureS many other highperformance circuits in a single-chip CMOS design, including an A/D converter, serial interface, timer/counter, time base timer, vector interrupt, onscreen display function, I2C bus interface, PWM generator, remote control receiver, HSYNC counter, power supply frequency counter, and watchdog timer.

Also this IC provides power-on reset and sleep functions. The designers have ensured low power consumption for these powerful microcomputers.

The CXP852P32A is the on-chip PROM version of the CXP85232A with on-chip mask ROM, providing the function of being able to write directly into the program. Furthermore, because of the OSD character ROM can also be written directly into, it is suitable for evaluation use during system development and for small quantity production.
