General Description
CXP878P60 General Description
The CXP878P60 is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, high precision timing pattern generation circuit, PWM output, VISS/VASS circuit, 32kHz timer/counter, remote control reception circuit, HSYNC counter, VSYNC separator and the measurement circuit which measures signals of capstan FG and drum FG/PG and other servo systems, as well as basic configurations like 8-bit CPU, PROM, RAM and I/O port. They are integrated into a single chip.
Also the CXP878P60 provides sleep/stop functions which enable to lower power consumption.
The CXP878P60 is the PROM-incorporated version of the CXP87860 with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system developement and for small-quantity production.
CXP878P60 Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +7.0 | V | |
| Vpp | 0.3 to +13 | V | Incorporated PROM | |
| AVDD | AVss to +7.0*1 | V | ||
| AVSS | 0.3 to +0.3 | V | ||
| Input voltage | VIN | 0.3 to +7.0*2 | V | Port H pin |
| Output voltage | VOUT | 0.3 to +7.0*2 | V | |
| High level output current | IOH | 5 | mA | |
| High level total output current | IOH | 50 | mA | Total of output pins |
| Low level output current | IOL | 15 | mA | Other than large current output ports (value per pin) |
| IOLC | 20 | mA | Large current output pin*3: per pin | |
| Low level total output current | IOL | 130 | mA | Total of output pins |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 600 | mW | QFP |
CXP878P60 Features
• A wide instruction set (213 instructions) which covers various types of data
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5V to 5.5V) 122µs at 32kHz operation
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8 bits, 12 channels, successive approximation system (Conversion time of 20.0µs at 16MHz)
- Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel Incorporated two-wire 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- High precision timing pattern generator PPG: maximum of 19 pins, 32 stages programmable RTG: 5 pins, 2 channels
- PWM/DA gate output PWM: 12 bits, 2 channels (Repetitive frequency of 62kHz at 16MHz) DA gate pulse output: 13 bits, 4 channels
- Servo input control Capstan FG, drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14 bits
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control reception circuit 8-bit pulse measurement counter with on-chip, 6-stage FIFO
- HSYNC counter 12-bit event counter (Counts SYNC1 input.)
• Interruption 23 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5V to 5.5V) 122µs at 32kHz operation
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8 bits, 12 channels, successive approximation system (Conversion time of 20.0µs at 16MHz)
- Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel Incorporated two-wire 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- High precision timing pattern generator PPG: maximum of 19 pins, 32 stages programmable RTG: 5 pins, 2 channels
- PWM/DA gate output PWM: 12 bits, 2 channels (Repetitive frequency of 62kHz at 16MHz) DA gate pulse output: 13 bits, 4 channels
- Servo input control Capstan FG, drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14 bits
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control reception circuit 8-bit pulse measurement counter with on-chip, 6-stage FIFO
- HSYNC counter 12-bit event counter (Counts SYNC1 input.)
• Interruption 23 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP

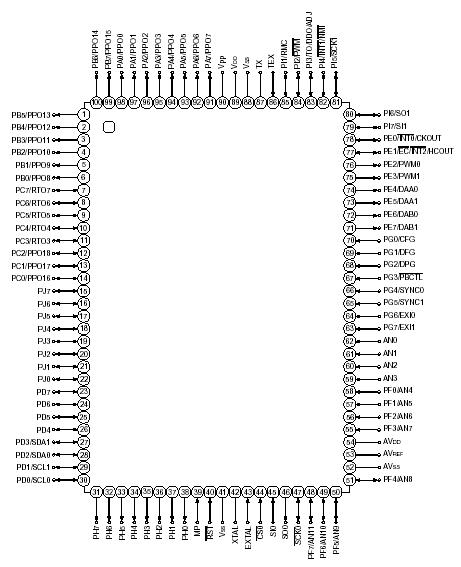

CXP878P60 Connection Diagram
CXP878P60
