Purchase CY28325-3, In-stock CY28325-3 From SeekIC.
- Table of contents:
CY28325-3
-
Suppliers
DataSheet
General Description
CY28325-3 Features
• Spread Spectrum Frequency Timing Generator for VIA PT/M 266-800 Pentium® 4 Chipsets
• Programmable clock output frequency with less than 1 MHz increment
• Integrated fail-safe Watchdog Timer for system recovery
• Selectable hardware or software-programmed clock frequency when Watchdog Timer time-out
• Capable to generate system RESET after a Watchdog Timer time-out occurs or a change in output frequency via SMBus interface
• Support SMBus Byte Read/Write and Block Read/Write operations to simplify system BIOS development
• Vendor ID and Revision ID support
• Programmable-drive strength support
• Programmable-output skew support
• Three copies AGP Clocks
• Power management control inputs

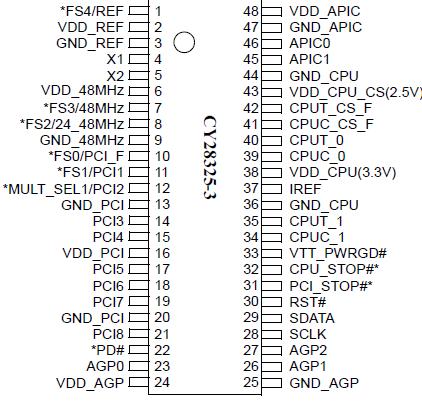

• Available in 48-pin SSOP
CY28325-3
PDF/DataSheet Download
- Datasheet: CY28325-3
- File Size: 272447 KB
- Manufacturer: CYPRESS [Cypress Semiconductor]
- Click here to Download
