CY28344
-
Suppliers
DataSheet
General Description
CY28344 Maximum Ratings
Supply Voltage ................................................. 0.5 to +7.0V
Input Voltage ..............................................0.5V to VDD+0.5
Storage Temperature (Non-Condensing).... 65°C to +150°C
Max. Soldering Temperature (10 sec) ........................ +260°C
Junction Temperature ................................................ +150°C
Package Power Dissipation.................................................1
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ..............................> 2000V
Input Voltage ..............................................0.5V to VDD+0.5
Storage Temperature (Non-Condensing).... 65°C to +150°C
Max. Soldering Temperature (10 sec) ........................ +260°C
Junction Temperature ................................................ +150°C
Package Power Dissipation.................................................1
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ..............................> 2000V
CY28344 Features
• Compatible to Intel® CK-Titan and CK-408 Clock Synthesizer/Driver Specifications
• System frequency synthesizer for Intel Brookdale (845) and Brookdale G Pentium® 4 Chipsets
• Programmable clock output frequency with less than 1MHz increment
• Integrated fail-safe Watchdog timer for system recovery
• Automatically switch to HW-selected or SW-programmed clock frequency when Watchdog timer time-out
• Capable of generating system RESET after a Watchdog timer time-out occurs or a change in output frequency via SMBus interface
• Support SMBus byte Read/Write and block Read/Write operations to simplify system BIOS development
• Vendor ID and Revision ID support
• Programmable drive strength support
• Programmable output skew support
• Power management control inputs
• Available in 48-pin SSOP

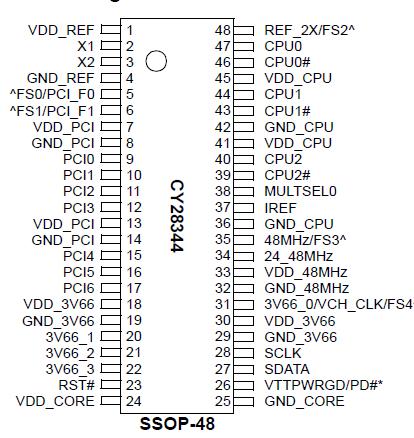

CY28344 Connection Diagram
CY28344
