General Description
CY28800 General Description
The CY28800 is a differential buffer and serves as a companion device to the CK409 or CK410 clock generator. The device is capable of distributing the Serial Reference Clock (SRC) in PCI Express and SATA implementations.
CY28800 Maximum Ratings
| Parameter | Description | Condition | Min. | Max. | Unit |
| VDD | Core Supply Voltage | 0.5 | 4.6 | V | |
| VDD_A | Analog Supply Voltage | 0.5 | 4.6 | V | |
| VIN | Input Voltage | Relative to VSS | 0.5 | VDD + 0.5 | VDC |
| TS | Temperature, Storage | Non-functional | 0.5 | +150 | °C |
| TA | Temperature, Operating Ambient | Functional | 65 | 70 | °C |
| TJ | Temperature, Junction | Functional | 0 | 150 | °C |
| ESDHBM | ESD Protection (Human Body Model) | MIL-STD-883, Method 3015 | 2000 | V | |
| UL-94 | Flammability Rating | At 1/8 in. | V0 | ||
| MSL | Moisture Sensitivity Level | 1 | |||
CY28800 Features
• CK409 and CK410 companion buffer
• Eight differential 0.7V clock output pairs
• OE_INV input for inverting OE, PWRDWN, and SRC_STP active levels
• Individual OE controls
• Low CTC jitter (< 50 ps)
• Programmable bandwidth
• SRC_STP power management control
• SMBus Block/Byte/Word Read and Write support
• 3.3V operation
• PLL Bypass-configurable
• Divide by 2 programmable
• 48-pin SSOP package
• Eight differential 0.7V clock output pairs
• OE_INV input for inverting OE, PWRDWN, and SRC_STP active levels
• Individual OE controls
• Low CTC jitter (< 50 ps)
• Programmable bandwidth
• SRC_STP power management control
• SMBus Block/Byte/Word Read and Write support
• 3.3V operation
• PLL Bypass-configurable
• Divide by 2 programmable
• 48-pin SSOP package

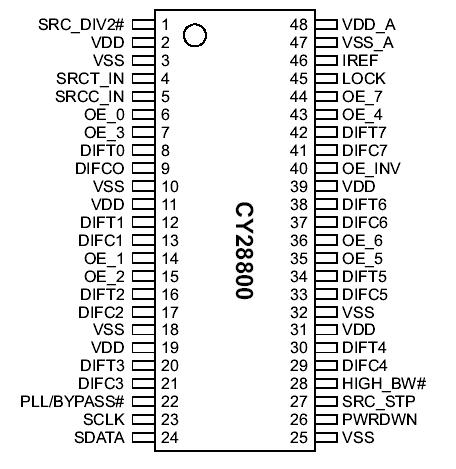

CY28800 Connection Diagram
CY28800OXC
