Part Number: CY74FCT162823T
Description: The CY74FCT16823T and the CY74FCT162823T 18-bit bus interface registers are designed for use in high-speed, low-power s...
- Table of contents:
CY74FCT162823T
-
Suppliers
DataSheet
General Description
CY74FCT162823T General Description
The CY74FCT16823T and the CY74FCT162823T 18-bit bus interface registers are designed for use in high-speed, low-power systems needing wide registers and parity. 18-bit operation is achieved by connecting the control lines of the two 9-bit registers. Flow-through pinout and small shrink packaging aids in simplifying board layout. The outputs are designed with a power-off disable feature to allow live insertion of boards.
The CY74FCT16823T is ideally suited for driving high-capacitance loads and low-impedance backplanes.
The CY74FCT162823T has 24-mA balanced output drivers with current limiting resistors in the outputs. This reduces the need for external terminating resistors and provides for minimal undershoot and reduced ground bounce. The CY74FCT162823T is ideal for driving transmission lines.
CY74FCT162823T Maximum Ratings
Storage Temperature................................................................-55°C to +125°C
Ambient Temperature with Power Applied ................................-55°C to +125°C
DC Input Voltage..............................................................................-0.5V to +7.0V
DC Output Voltage ...........................................................................-0.5V to +7.0V
DC Output Current Maximum Sink Current/Pin) ..............................-60 to +120 mA
Power Dissipation ...........................................................................................1.0W
Static Discharge Voltage..............................................................................>2001V
Ambient Temperature with Power Applied ................................-55°C to +125°C
DC Input Voltage..............................................................................-0.5V to +7.0V
DC Output Voltage ...........................................................................-0.5V to +7.0V
DC Output Current Maximum Sink Current/Pin) ..............................-60 to +120 mA
Power Dissipation ...........................................................................................1.0W
Static Discharge Voltage..............................................................................>2001V
CY74FCT162823T Features
• FCT-E speed at 4.4 ns
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of -40°C to +85°C
• VCC = 5V ± 10%
CY74FCT16823T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at VCC = 5V, TA = 25°C
CY74FCT162823T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at VCC = 5V, TA= 25°C
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of -40°C to +85°C
• VCC = 5V ± 10%
CY74FCT16823T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at VCC = 5V, TA = 25°C
CY74FCT162823T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at VCC = 5V, TA= 25°C

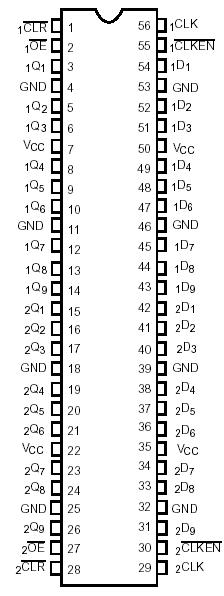

CY74FCT162823T Connection Diagram
