Product Details

Description



Features:

• SONET/SDH and ATM Compatible
• Clock and data recovery from 51.84- or 155.52-MHz datastream
• 155.52-MHz clock multiplication from 19.44-MHz source
• 51.84-MHz clock multiplication from 6.48-MHz source
• ±1% frequency agility
• Line Receiver Inputs: No external buffering required
• Differential output buffering
• 100K PECL compatible I/O
• No output clock "drift" without data transitions
• Link Status Indication
• Loop-back testing
• Dual reference clock inputs and reference clock output
• Transition between REFCLKs is slowed to prevent data recovery errors
• Single +3.3V ±10% supply
• 100-pin TQFP
• Compatible with fiber-optic modules, coaxial cable, and twisted pair media
• Power-down options to minimize power or crosstalk
• Low operating current: <400 mA
• 0.8m BiCMOS


Pinout

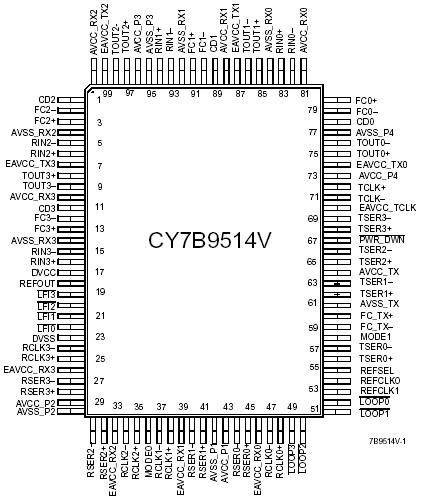

Connection Diagram


Specifications

Storage Temperature ...............................-65°C to +150°C
Ambient Temperature with
Power Applied..........................................-55°C to +125°C
Supply Voltage to Ground Potential................-0.5V to +5.0V
DC Input Voltage ..............................-0.5V to + (VCC + 0.5)V
Output Current into TTL Outputs (LOW) ......................30 mA
Output Current into ECL Outputs (HIGH).....................-50 mA
Static Discharge Voltage............................................>2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current .................................................... >200 mA


Description

The Quad PMD ATM Transceiver is used in SONET/SDH and ATM CY7B9514V applications to recover clock and data information from a 155.52-MHz or 51.84-MHz NRZ or NRZI serial data stream and to provide differential data buffering for the Transmit side of the system.
