CY7B991V

• All output pair skew <100 ps typical (250 max.)
• 3.75- to 80-MHz output operation
• User-selectable output functions
    -Selectable skew to 18 ns
    -Inverted and non-inverted
    -Operation at ¹⁄₂ and ¹⁄₄ input frequency
    -Operation at 2x and 4x input frequency (input as low as 3.75 MHz)
• Zero input to output delay
• 50% duty-cycle outputs
• LVTTL Outputs drive 50 terminated lines
• Operates from a single 3.3V supply
• Low operating current

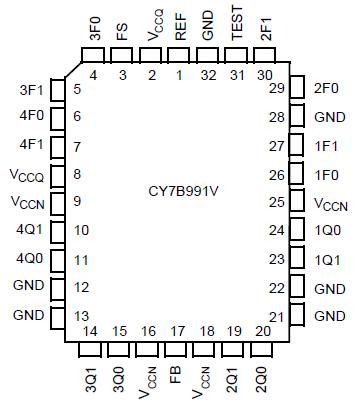

• 32-pin PLCC package
• Jitter < 200 ps peak-to-peak (< 25 ps RMS)

The CY7B991V Low Voltage Programmable Skew Clock Buffer (LVPSCB) offers user-selectable control over system clock functions. These multiple-output clock drivers provide the system integrator with functions necessary to optimize the timing of high-performance computer systems. Eight individual drivers, arranged as four pairs of user-controllable outputs, CY7B991V can each drive terminated transmission lines with impedances as low as 50 while delivering minimal and specified output skews and full-swing logic levels (LVTTL).

Each output of CY7B991V can be hardwired to one of nine delay or function configurations. Delay increments of 0.7 to 1.5 ns are determined by the operating frequency with outputs able to skew up to ±6 time units from their nominal "zero" skew position. The completely integrated PLL allows external load and transmission line delay effects to be canceled. When this "zero delay" capability of the LVPSCB is combined with the selectable output CY7B991V skew functions, the user can create output-to-output delays of up to ±12 time units.

Divide-by-two and divide-by-four output functions of CY7B991V are provided for additional flexibility in designing complex clock systems. When combined with the internal PLL, these divide functions allow distribution of a low-frequency clock, CY7B991V can be multiplied by two or four at the clock destination. This facility minimizes clock distribution difficulty while allowing maximum system clock speed and flexibility.
