General Description
CY7C1019 General Description
The CY7C1019 is a high-performance CMOS static RAM organized as 131,072 words by 8 bits. Easy memory expansion is provided by an active LOW chip enable (CE), an active LOW output enable (OE), and three-state drivers. This device has an automatic power-down feature that significantly reduces power consumption when deselected.
Writing to the device is accomplished by taking chip enable (CE) and write enable (WE) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A16). Reading from the device is accomplished by taking chip enable (CE) and output enable (OE) LOW while forcing write enable (WE) HIGH. Under these conditions, the contents of the memory location specified by the address pins will appear on the I/O pins.
The eight input/output pins (I/O0 through I/O7) are placed in a high-impedance state when the device is deselected (CE HIGH), the outputs are disabled (OE HIGH), or during a write operation (CE LOW, and WE LOW).
The CY7C1019 is available in standard 400-mil-wide SOJs.
CY7C1019 Maximum Ratings
(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ..............................65°C to +150°C
Ambient Temperature with
Power Applied...........................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1] .... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[1] ..................................0.5V to VCC + 0.5V
DC Input Voltage[1]...............................0.5V to VCC + 0.5V
Current into Outputs (LOW)........................................ 20 mA
Static Discharge Voltage .......................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.....................................................>200 mA
Storage Temperature ..............................65°C to +150°C
Ambient Temperature with
Power Applied...........................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1] .... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[1] ..................................0.5V to VCC + 0.5V
DC Input Voltage[1]...............................0.5V to VCC + 0.5V
Current into Outputs (LOW)........................................ 20 mA
Static Discharge Voltage .......................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.....................................................>200 mA
CY7C1019 Features
• High speed
-tAA = 10 ns
• CMOS for optimum speed/power
• Center power/ground pinout
• Automatic power-down when deselected
• Easy memory expansion with CE and OE options
-tAA = 10 ns
• CMOS for optimum speed/power
• Center power/ground pinout
• Automatic power-down when deselected
• Easy memory expansion with CE and OE options

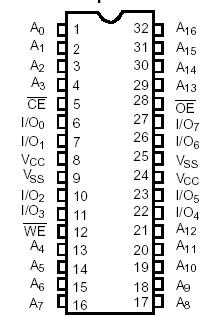

CY7C1019 Connection Diagram
CY7C1019
