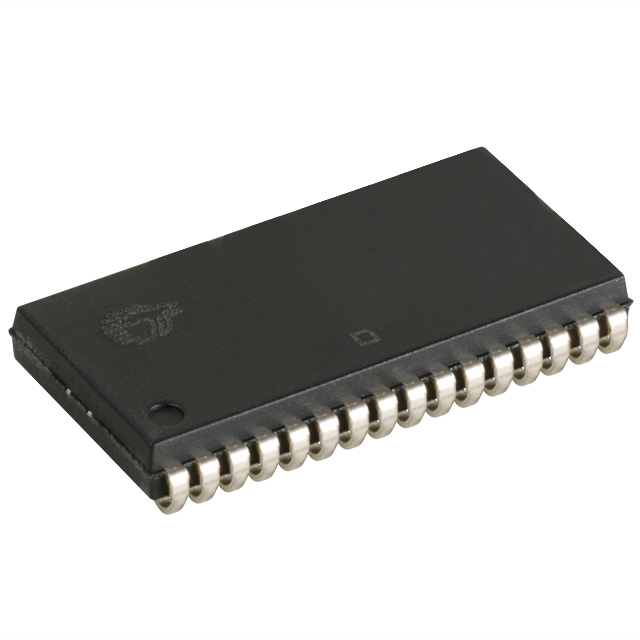

CY7C1019BV33-15VC General Description
CY7C1019BV33-15VC Maximum Ratings
(Above which the useful life may be impaired. For user guidelines,
not tested.)
Storage Temperature ........................................65°C to +150°C
Ambient Temperature with
Power Applied....................................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1]............0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[1].........................................0.5V to VCC + 0.5V
DC Input Voltage[1].....................................0.5V to VCC + 0.5V
Current into Outputs (LOW)..............................................20 mA
Static Discharge Voltage.................................................>2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current..........................................................>200 mA
CY7C1019BV33-15VC Features
• High speed
-tAA = 10 ns
• CMOS for optimum speed/power
• Center power/ground pinout
• Automatic power-down when deselected
• Easy memory expansion with CE and OE options
• Functionally equivalent to CY7C1019V33 and/or
CY7C1018V33

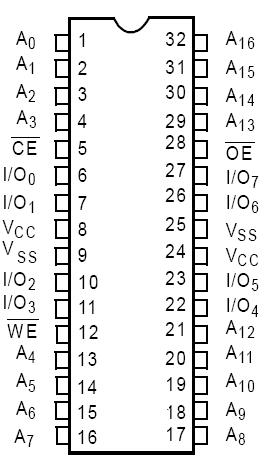

CY7C1019BV33-15VC Connection Diagram
