CY7C1020B General Description
CY7C1020B Maximum Ratings
(Above which the useful life may be impaired. For user guidelines,
not tested.)
Storage Temperature ...............................65°C to +150°C
Ambient Temperature with
Power Applied..........................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1] .... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[1] ....................................0.5V to VCC + 0.5V
DC Input Voltage[1] .................................0.5V to VCC + 0.5V
Current into Outputs (LOW)......................................... 20 mA
Static Discharge Voltage............................................ >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.....................................................>200 mA
CY7C1020B Features
• High speed
- tAA = 12, 15 ns
• CMOS for optimum speed/power
• Low active power
- 825 mW (max.)
• Low CMOS standby power (L version only)
- 2.75 mW (max.)
• Automatic power-down when deselected
• Independent control of upper and lower bits
• Available in lead-free and non-lead-free 44-pin TSOP II and 44-pin (400-mil) SOJ packages

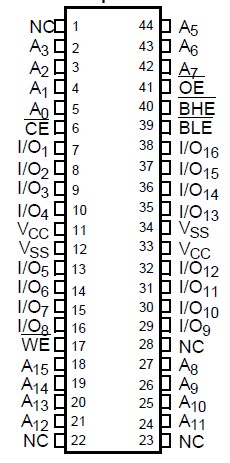

CY7C1020B Connection Diagram
