Purchase CY7C1049BV33, In-stock CY7C1049BV33 From SeekIC.
Package Cooled:TSOP
Part Number: CY7C1049BV33
Package Cooled: TSOP
Description: The CY7C1049BV33 is a high-performance CMOS Static RAM organized as 524,288 words by 8 bits. Easy memo...
- Table of contents:
CY7C1049BV33
-
Suppliers
DataSheet
General Description
CY7C1049BV33 General Description
The CY7C1049BV33 is a high-performance CMOS Static RAM organized as 524,288 words by 8 bits. Easy memoryexpansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers. Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A18).
Reading from the device is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing Write Enable (WE) HIGH. Under these conditions, the contents of the memory location specified by the address pins will appear on the I/O pins.
The eight input/output pins (I/O0 through I/O7) are placed in a high-impedance state when the device is deselected (CE HIGH), the outputs are disabled (OE HIGH), or during a write operation (CE LOW, and WE LOW).
The CY7C1049BV33 is available in a standard 400-mil-wide 36-pin SOJ and 44-pin TSOPII packages with center power and ground (revolutionary) pinout.
CY7C1049BV33 Maximum Ratings
Storage Temperature ................................................65°C to +150°C
Ambient Temperature with Power Applied..................55°C to +125°C
Supply Voltage on VCC to Relative GND[1]`.....................0.5V to +4.6V
DC Voltage Applied to Outputs in High Z State[1]...0.5V to VCC + 0.5V
DC Input Voltage[1]................................................0.5V to VCC + 0.5V
Current into Outputs (LOW).........................................................20 mA
Ambient Temperature with Power Applied..................55°C to +125°C
Supply Voltage on VCC to Relative GND[1]`.....................0.5V to +4.6V
DC Voltage Applied to Outputs in High Z State[1]...0.5V to VCC + 0.5V
DC Input Voltage[1]................................................0.5V to VCC + 0.5V
Current into Outputs (LOW).........................................................20 mA
CY7C1049BV33 Features
• High speed
-tAA = 15 ns
• Low active power
-504 mW (max.)
• Low CMOS standby power (Commercial L version)
-1.8 mW (max.)
• 2.0V Data Retention (660 µW at 2.0V retention)
• Automatic power-down when deselected
• TTL-compatible inputs and outputs
• Easy memory expansion with CE and OE features
-tAA = 15 ns
• Low active power
-504 mW (max.)
• Low CMOS standby power (Commercial L version)
-1.8 mW (max.)
• 2.0V Data Retention (660 µW at 2.0V retention)
• Automatic power-down when deselected
• TTL-compatible inputs and outputs
• Easy memory expansion with CE and OE features

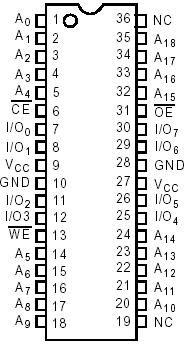

CY7C1049BV33 Connection Diagram
CY7C1049BV33
PDF/DataSheet Download
- Datasheet: CY7C1049BV33
- File Size: 482891 KB
- Manufacturer: CYPRESS
- Click here to Download
