Product Details

Description



Features:

• True dual-ported memory cells which allow simultaneous reads of the same memory location
• 2K x 16 organization
• 0.65-micron CMOS for optimum speed/power
• High-speed access: 25/35/55 ns
• Low operating power: ICC = 150 mA (typ.)
• Fully asynchronous operation
• Master CY7C133 expands data bus width to 32 bits or more using slave CY7C143
• BUSY input flag on CY7C133; BUSY output flag on CY7C143
• Available in 68-pin PLCC
• Pin-compatible and functionally equivalent to IDT7133 and IDT7143


Pinout

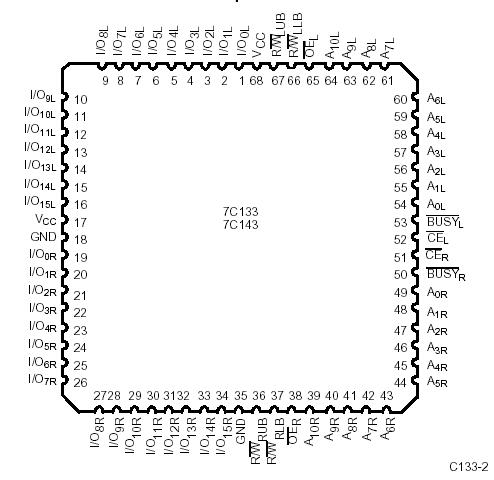

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ............................... −65°C to +150°C
Ambient Temperature with
Power Applied........................................... −55°C to +125°C
Supply Voltage to Ground Potential
(Pin 48 to Pin 24)..............................................−0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State..................................................−0.5V to +7.0V
DC Input Voltage .............................................−3.5V to +7.0V
Output Current into Outputs (LOW) ............................. 20 mA
Static Discharge Voltage ............................................ >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current....................................................... >200 mA


Description

The CY7C133 and CY7C143 are high-speed CMOS 2K by 16 dual-port static RAMs. Two ports are provided permitting independent access to any location in memory. The CY7C133 can be utilized as either a stand-alone 16-bit dual-port static RAM or as a master dual-port RAM in conjunction with the CY7C143 slave dual-port device in systems requiring 32-bit or greater word widths. It is the solution to applications requiring shared or buffered data, such as cache memory for DSP, bit-slice, or multiprocessor designs.

Each port of CY7C133 and CY7C143 has independent control pins; Chip Enable (CE), Write Enable (R/WUB, R/WLB), and Output Enable (OE). BUSY signals that the port is trying to access the same location currently being accessed by the other port. An automatic power-down feature of CY7C133 and CY7C143 is controlled independently on each port by the Chip Enable (CE) pin.

The CY7C133 and CY7C143 are available in 68-pin PLCC.
