CY7C1345G

•128K X 36 common I/O
•3.3V 5% and +10% core power supply (VDD)
•2.5V or 3.3V I/O supply (VDDQ)
•Fast clock-to-output times 6.5 ns (133-MHz version) 7.5 ns (117-MHz version) 8.0 ns (100-MHz version)
•Provide high-performance 2-1-1-1 access rate
•User-selectable burst counter supporting Intel® Pentium® interleaved or linear burst sequences
•Separate processor and controller address strobes
•Synchronous self-timed write
•Asynchronous output enable

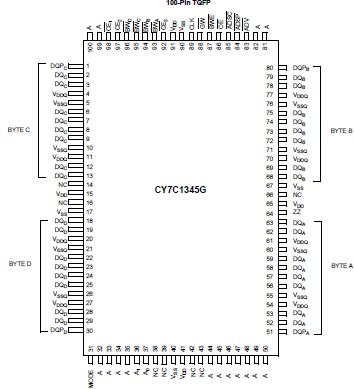

•Lead-Free 100-pin TQFP and 119-ball BGA packages
•"ZZ" Sleep Mode option

(Above which the useful life may be impaired. For user guidelines,
not tested.)
Storage Temperature ..........................................................65°C to +150°C
Ambient Temperature with
Power Applied.......................................................................55°C to +125°C
Supply Voltage on VDD Relative to GND...................................... 0.5V to +4.6V
DC Voltage Applied to Outputs
in tri-state ....................................................................... 0.5V to VDDQ + 0.5V
DC Input Voltage.................................................................0.5V to VDD + 0.5V
Current into Outputs (LOW)....................................................................... 20 mA
Static Discharge Voltage.......................................................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-up Current.................................................................................... >200 mA

The CY7C1345G is a 131,072 x 36 synchronous cache RAM designed to interface with high-speed microprocessors with minimum glue logic. Maximum access delay from clock rise is 6.5 ns (133-MHz version). A 2-bit on-chip counter captures the first address in a burst and increments the address automatically for the rest of the burst access. All synchronous inputs of CY7C1345G are gated by registers controlled by a positive-edge-triggered Clock Input (CLK). The synchronous inputs of CY7C1345G include all addresses, all data inputs, address-pipelining Chip Enable (CE1), depth-expansion Chip Enables (CE2 and CE3), Burst Control inputs (ADSC, ADSP, and ADV), Write Enables (BWx, and BWE), and Global Write (GW). Asynchronous inputs include the Output Enable (OE) and the ZZ pin.

The CY7C1345G allows either interleaved or linear burst sequences, selected by the MODE input pin. A HIGH selects an interleaved burst sequence, while a LOW selects a linear  burst sequence. Burst accesses CY7C1345G can be initiated with the Processor Address Strobe (ADSP) or the cache Controller Address Strobe (ADSC) inputs.

Addresses and chip enables CY7C1345G are registered at rising edge of clock when either Address Strobe Processor (ADSP) or Address Strobe Controller (ADSC) are active. Subsequent burst addresses can be internally generated as controlled by the Advance pin (ADV).

The CY7C1345G operates from a +3.3V core power supply while all outputs may operate with either a +2.5 or +3.3V supply. All inputs and outputs are JEDEC-standard JESD8-5-compatible.
