CY7C1352 General Description
CY7C1352 Maximum Ratings
(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ..................................... −65°C to +150°C
Ambient Temperature with
Power Applied.................................................. −55°C to +125°C
Supply Voltage on VDD Relative to GND.........−0.5V to +4.6V
DC Voltage Applied to Outputs
in High Z State[7] .....................................−0.5V to VDDQ + 0.5V
DC Input Voltage[7]..................................−0.5V to VDDQ + 0.5V
Current into Outputs (LOW)......................................... 20 mA
Static Discharge Voltage .......................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.................................................... >200 mA
CY7C1352 Features
• Pin compatible and functionally equivalent to ZBT™ devices MCM63Z818 and MT55L256L18P
• Supports 143-MHz bus operations with zero wait states
-Data is transferred on every clock
• Internally self-timed output buffer control to eliminate the need to use OE
• Fully registered (inputs and outputs) for pipelined operation
• Byte Write Capability
• 256K x 18 common I/O architecture
• Single 3.3V power supply
• Fast clock-to-output times
-4.0 ns (for 143-MHz device)
-4.2 ns (for 133-MHz device)
-5.0 ns (for 100-MHz device)
-7.0 ns (for 80-MHz device)
• Clock Enable (CEN) pin to suspend operation
• Synchronous self-timed writes
• Asynchronous output enable
• JEDEC-standard 100-pin TQFP package
• Burst Capability-linear or interleaved burst order

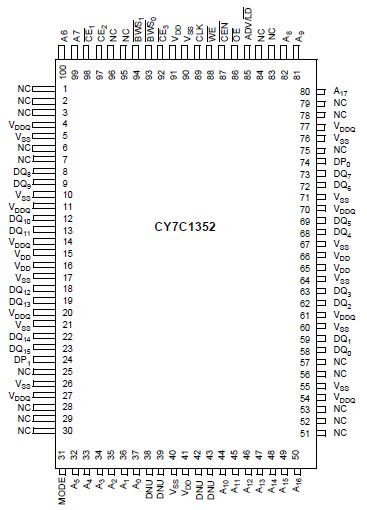

CY7C1352 Connection Diagram
