CY7C1382C Maximum Ratings
(Above which the useful life may be impaired. For user guide lines, not tested.)
Storage Temperature .............................65°C to +150°C
Ambient Temperature with
Power Applied.........................................55°C to +125°C
Supply Voltage on VDDRelative to GND..........0.3V to +4.6V
DC Voltage Applied to Outputs
in Tri-State...........................................0.5V to VDDQ + 0.5V
DC Input Voltage....................................0.5V to VDD + 0.5V
Current into Outputs (LOW).........................................20 mA
Static Discharge Voltage........................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-up Current..................................................... >200 mA
CY7C1382C Features
•Supports bus operation up to 250 MHz
•Available speed grades are 250, 225, 200,166 and
133MHz
•Registered inputs and outputs for pipelined operation
•3.3V core power supply
•2.5V / 3.3V I/O operation
•Fast clock-to-output times
-2.6 ns (for 250-MHz device)
-2.8 ns (for 225-MHz device)
-3.0 ns (for 200-MHz device)
-3.4 ns (for 166-MHz device)
-4.2 ns (for 133-MHz device)
•Provide high-performance 3-1-1-1 access rate
•User-selectable burst counter supporting Intel®
Pentium interleaved or linear burst sequences
•Separate processor and controller address strobes
•Synchronous self-timed writes
•Asynchronous output enable
•Single Cycle Chip Deselect
•Offered in JEDEC-standard 100-pin TQFP, 119-ball BGA
and 165-Ball fBGA packages
•IEEE 1149.1 JTAG-Compatible Boundary Scan
•"ZZ" Sleep Mode Option

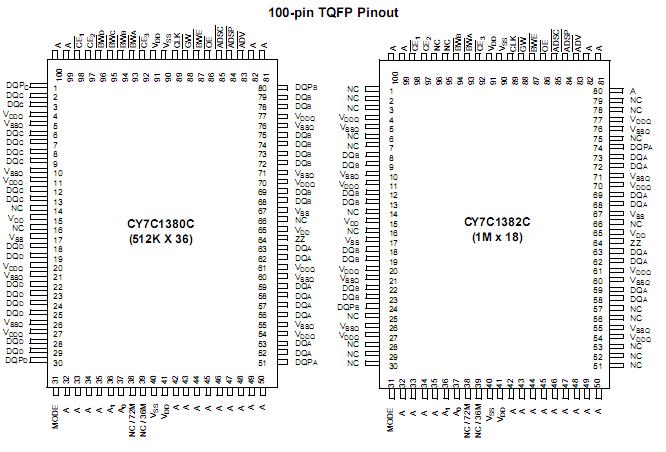

CY7C1382C Connection Diagram
