CY7C197BN General Description
CY7C197BN Maximum Ratings
Exceeding the maximum rating may impair the useful life of the device. These user guidelines are not tested.
Storage Temperature .................................65°C to +150°C
Ambient Temperature with
Power Applied.............................................55°C to +125°C
Supply Voltage on VCC to Relative GND............ 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[2] ......................................0.5V to VCC +0.5V
DC Input Voltage[2] ..................................0.5V to VCC +0.5V
Current into Outputs (LOW)........................................... 20 mA
Static Discharge Voltage.................................................2001V
(per MIL-STD-883, Method 3015)
Latch Up Current ........................................................>200 mA
CY7C197BN Features
• Fast access time: 12 ns
• Wide voltage range: 5.0V ± 10% (4.5V to 5.5V)
• CMOS for optimum speed and power
• TTL compatible inputs and outputs
• Available in 24-lead DIP and 24-lead SOJ

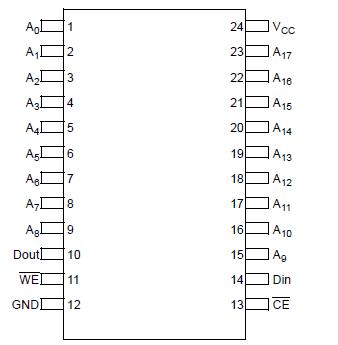

CY7C197BN Connection Diagram
