Purchase CY7C199CN, In-stock CY7C199CN From SeekIC.
MFG:CYPRESS D/C:08+
Part Number: CY7C199CN
MFG: CYPRESS
D/C: 08+
Description: The CY7C199CN is a high performance CMOS Asynchronous SRAM organized as 32K by 8 bits that supports an...
- Table of contents:
CY7C199CN
-
Suppliers
DataSheet
General Description
CY7C199CN General Description
The CY7C199CN is a high performance CMOS Asynchronous SRAM organized as 32K by 8 bits that supports an asynchronous memory interface. The device features an automatic power down feature that reduces power consumption when deselected.
See the "Truth Table" on page 3 in this data sheet for a complete description of read and write modes.
The CY7C199CN is available in Pb-free 28-pin TSOP I, 28-pin Molded SOJ and 28-pin DIP package(s).
CY7C199CN Maximum Ratings
| Parameter | Description | Value | Unit |
| TSTG | Storage Temperature | 65 to +150 | |
| TAMB | Ambient Temperature with Power Applied (that is, case temperature) | 55 to +125 | |
| VCC | Core Supply Voltage Relative to VSS | 0.5 to +7.0 | V |
| VIN, VOUT | DC Voltage Applied to Any Pin Relative to VSS | 0.5 to VCC + 0.5 | V |
| IOUT | Output Short-Circuit Current | 20 | mA |
| VESD | Static Discharge Voltage (in accordance with MIL-STD-883, Method 3015) | > 2001 | V |
| ILU | Latch-up Current | > 200 | mA |
CY7C199CN Features
• Fast access time: 12 ns, 15 ns, 20 ns, and 25 ns
• Wide voltage range: 5.0V ± 10% (4.5V to 5.5V)
• CMOS for optimum speed and power
• TTL-compatible inputs and outputs
• 2.0V data retention
• Low CMOS standby power
• Automated power down when deselected
• Available in Pb-free 28-pin TSOP I, 28-pin Molded SOJ and 28-pin DIP packages
• Wide voltage range: 5.0V ± 10% (4.5V to 5.5V)
• CMOS for optimum speed and power
• TTL-compatible inputs and outputs
• 2.0V data retention
• Low CMOS standby power
• Automated power down when deselected
• Available in Pb-free 28-pin TSOP I, 28-pin Molded SOJ and 28-pin DIP packages

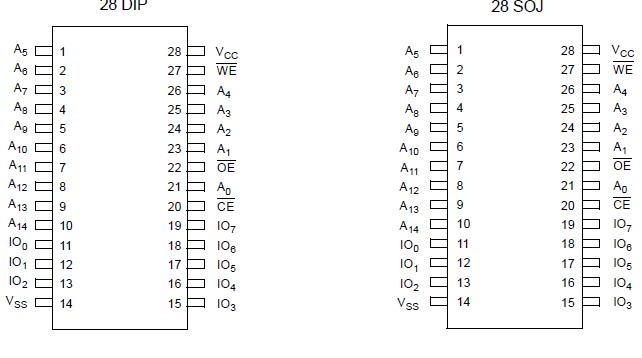

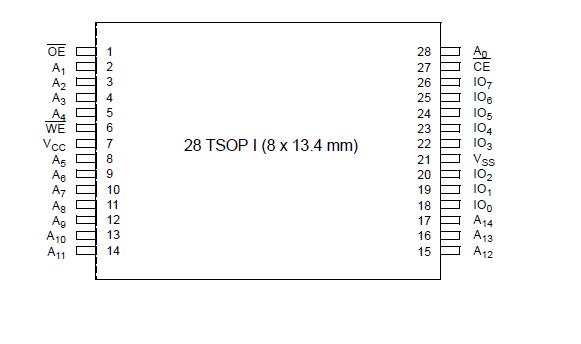

CY7C199CN Connection Diagram
CY7C199CN-12VC
PDF/DataSheet Download
- Datasheet: CY7C199CN-12VC
- File Size: 624337 KB
- Manufacturer: CYPRESS [Cypress Semiconductor]
- Click here to Download
