CY7C343B

Features: • 64 MAX macrocells in 4 LABs• 8 dedicated inputs, 24 bidirectional I/O pins• Programmable interconnect array• Advanced 0.65-micron CMOS technology to increase performance• Available in 44-pin HLCC, PLCC• Lowest power MAX devicePinoutSpecifications(Abo...

product image

CY7C343B Picture
See larger image
SeekIC No. : 004320312 Detail

CY7C343B: Features: • 64 MAX macrocells in 4 LABs• 8 dedicated inputs, 24 bidirectional I/O pins• Programmable interconnect array• Advanced 0.65-micron CMOS technology to increase perf...

CY7C343B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7C343B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 64 MAX macrocells in 4 LABs
• 8 dedicated inputs, 24 bidirectional I/O pins
• Programmable interconnect array
• Advanced 0.65-micron CMOS technology to increase performance
• Available in 44-pin HLCC, PLCC
• Lowest power MAX device

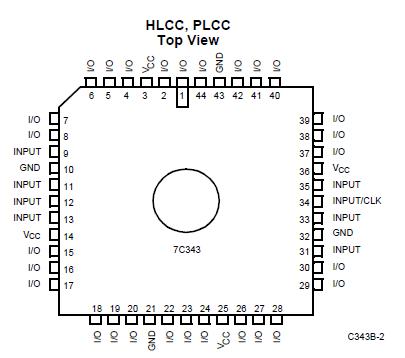

Pinout

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ..................................65°C to+135°C
Ambient Temperature with
Power Applied..............................................65°C to+135°C
Maximum Junction Temperature
(Under Bias)................................................................. 150°C
Supply Voltage to Ground Potential[1] .............2.0V to+7.0V
DC Output Current, per Pin[1] ...................25 mA to +25 mA
DC Input Voltage[1] .........................................2.0V to +7.0V


Description

The CY7C343B is a high-performance, high-density erasable programmable logic device, available in 44-pin PLCC and HLCC packages.

The CY7C343B contains 64 highly flexible macrocells and 128 expander product terms. These resources of CY7C343B are divided into four Logic Array Blocks (LABs) connected through the Programmable Inter-connect Array (PIA). There are 8 input pins, one that doubles as a clock pin when needed. The CY7C343B also has 28 I/O pins, each connected to a macrocell (6 for LABs A and C, and 8 for LABs B and D). The remaining 36 macrocells are used for embedded logic.

The CY7C343B is excellent for a wide range of both synchronous and asynchronous applications.
