Product Details

Description



Features:

• High-speed, low-power, first-in first-out (FIFO) memories w/ three independent ports (one bidirectional x36, and two unidirectional x18)
• 256 x36/x18x2 (CY7C43626)
• 512 x36/x18x2 (CY7C43636)
• 1K x36/x18x2 (CY7C43646)
• 4K x36/x18x2 (CY7C43666)
• 16K x36/x18x2 (CY7C43686)
• 0.35-micron CMOS for optimum speed/power
• High speed 133-MHz operation (7.5-ns read/write cycle times)
• Low power
   -ICC= 100 mA
   -ISB= 10 mA
• Fully asynchronous and simultaneous read and write operation permitted
• Mailbox bypass register for each FIFO
• Parallel and Serial Programmable Almost Full and Almost Empty flags
• Retransmit function
• Standard or FWFT mode user selectable
• Partial Reset
• Big or Little Endian format for word or byte bus sizes
• 128-pin TQFP packaging
• Pin-compatible, feature enhanced, density upgrade to IDT723626/36/46 family
• Easily expandable in width and depth


Pinout

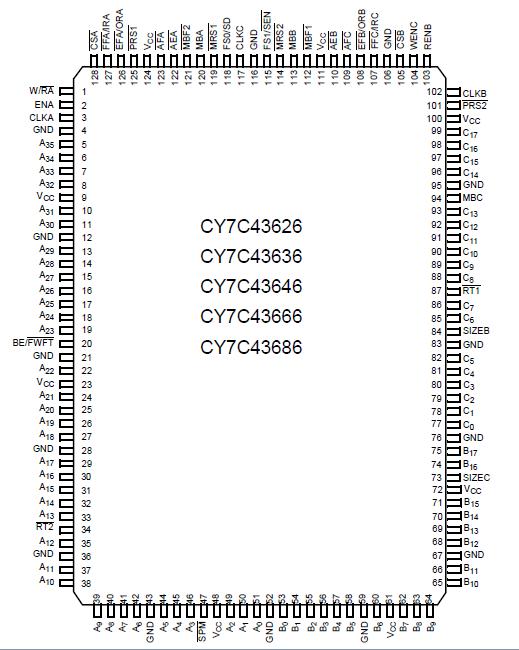

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ....................................... −65°C to +150°C
Ambient Temperature with
Power Applied.................................................... −55°C to +125°C
Supply Voltage to Ground Potential..................−0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[2] ..........................................−0.5V to VCC+0.5V
DC Input Voltage[2].......................................−0.5V to VCC+0.5V
Output Current into Outputs (LOW) ............................. 20 mA
Static Discharge Voltage ........................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current ...................................................... >200mA
