Features:

. UTMI-compliant/USB-2.0-certified for device operation
. Operates in both USB 2.0 high speed (HS), 480 Mbits/second, and full speed (FS), 12 Mbits/second
. Serial-to-parallel and parallel-to-serial conversions
. 8-bit unidirectional, 8-bit bidirectional, or 16-bit bidirec-tional external data interface
. Synchronous field and EOP detection on receive pack-ets
. Synchronous field and EOP generation on transmit packets
. Data and clock recovery from the USB serial stream
. Bit stuffing/unstuffing; bit stuff error detection
. Staging register to manage data rate variation due to bit stuffing/unstuffing
. 16-bit 30-MHz, and 8-bit 60-MHz parallel interface
. Ability to switch between FS and HS terminations and signaling
. Supports detection of USB reset, suspend, and resume
. Supports HS identification and detection as defined by the USB 2.0 Specification
. Supports transmission of resume signaling
. 3.3V operation
. Two package options-56-pin QFN, and 56-pin SSOP
. All required terminations, including 1.5K-ohm pull-up on DPLUS, are internal to chip
. Supports USB 2.0 test modes.



Application

. DSL modems
. ATA interface
. Memory card readers
. Legacy conversion devices
. Cameras
. Scanners
. Home PNA
. Wireless LAN
. MP3 players
. Networking.


Pinout

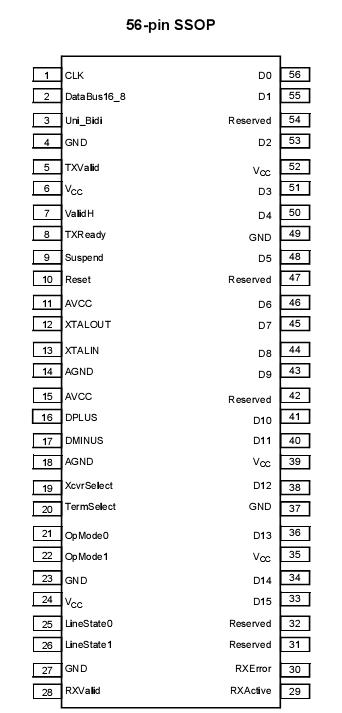

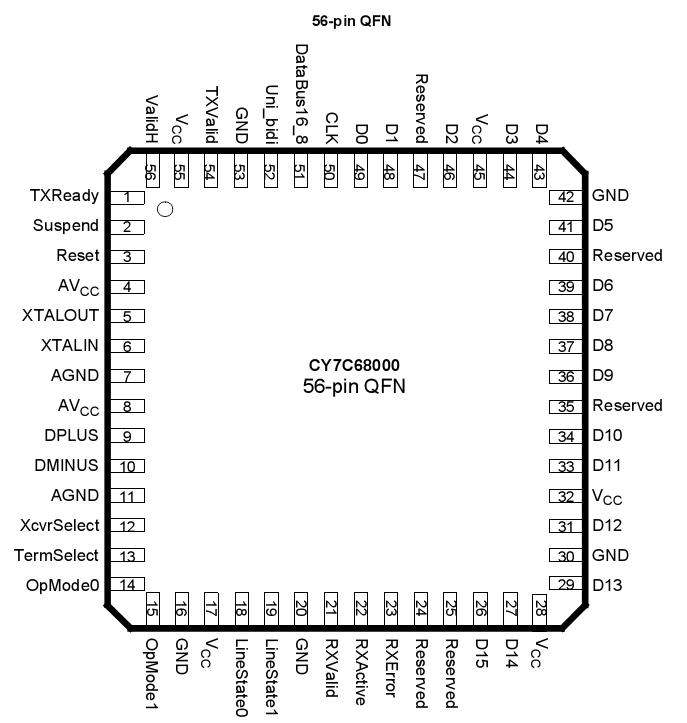

Connection Diagram Connection Diagram


Specifications

Storage Temperature ...........................................65°C to +150°C
Ambient Temperature with Power Supplied.................0°C to +70°C
Supply Voltage to Ground Potential.............................0.5V to +4.0V
DC Input Voltage to Any Input Pin............................................ 5.25 V
DC Voltage Applied to Outputs in High-Z State...0.5V to VCC + 0.5V
Power Dissipation....................................................................630 mW
Static Discharge Voltage.........................................................> 2000V
Max Output Current, per IO pin.................................................. 4 mA
Max Output Current, all 21IO pins .........................................84 mA


Description

The Cypress EZ-USB TX2(TM),CY7C68000 is a Universal Serial Bus (USB) specification revision 2.0 transceiver, serial/deserializer, to a parallel interface of either 16 bits at 30 MHz or eight bits at 60 MHz. The TX2,CY7C68000 provides a high-speed physical layer interface that operates at the maximum allowable USB 2.0 bandwidth. This allows the system designer to keep the complex high- speed analog USB components external to the digital ASIC which decreases development time and associated risk. A standard interface of the CY7C68000 is provided that is USB 2.0-certified and is compliant with Transceiver Macrocell Interface (UTMI) speci- fication version 1.05 dated 3/29/01.

Two packages of the CY7C68000 are defined for the family: 56-pin SSOP and 56-pin QFN.

The function block diagram is shown in Figure 1-1.
