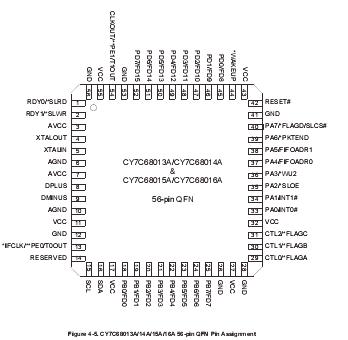

CY7C68016A

 USB 2.0USB-IF high speed certified (TID # 40440111)
Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor
Fit, form and function compatible with the FX2
    -Pin-compatible
    -Object-code-compatible
    -Functionally-compatible (FX2LP is a superset)
Ultra Low power: I_CC  no more than 85 mA in any mode
    -Ideal for bus and battery powered applications
Software: 8051 code runs from:
    -Internal RAM, which is downloaded via USB
    -Internal RAM, which is loaded from EEPROM
    -External memory device (128 pin package)
16 KBytes of on-chip Code/Data RAM
Four programmable BULK/INTERRUPT/ISOCHRO-NOUS endpoints
    -Buffering options: double, triple, and quad
Additional programmable (BULK/INTERRUPT) 64-byte endpoint
8- or 16-bit external data interface
Smart Media Standard ECC generation
GPIF (General Programmable Interface)
   -Allows direct connection to most parallel interface
   -Programmable waveform descriptors and configu-ration registers to define waveforms
   -Supports multiple Ready (RDY) inputs and Control (CTL) outputs

Integrated, industry-standard enhanced 8051
    -48-MHz, 24-MHz, or 12-MHz CPU operation
    -Four clocks per instruction cycle
    -Two USARTS
    -Three counter/timers
    -Expanded interrupt system
    -Two data pointers
3.3V operation with 5V tolerant inputs
  Vectored USB interrupts and GPIF/FIFO interrupts
  Separate data buffers for the Set-up and Data portions of a CONTROL transfer

Integrated I²C controller, runs at 100 or 400 kHz
Four integrated FIFOs
    -Integrated glue logic and FIFOs lower system cost
    -Automatic conversion to and from 16-bit buses
    -Master or slave operation
    -Uses external clock or asynchronous strobes
    -Easy interface to ASIC and DSP ICs

Storage Temperature ...................................................................................... 65°C to +150°C
Ambient Temperature with Power Supplied.............................................................0°C to +70°C
Supply Voltage to Ground Potential ........................................................................0.5V to +4.0V
DC Input Voltage to Any Input Pin ................................................................................... 5.25V^[15]
DC Voltage Applied to Outputs in High Z State..............................................  0.5V to VCC + 0.5V
Power Dissipation .............................................................................................................. 300 mW
Static Discharge Voltage .................................................................................................. . > 2000V
Max Output Current, per I/O port ........................................................................................ . 10 mA
Max Output Current, all five I/O ports (128- and 100-pin packages) ................................. ... 50 mA
