CY7C68023

Features: • High (480-Mbps) or full (12-Mbps) speed USB support• Both common NAND page sizes supported -512bytes-Up to 1 Gbit Capacity -2K bytes-Up to 8 Gbit Capacity• 8 chip enable pins -Up to 8 NAND Flash single-device chips -Up to 4 NAND Flash dual-device chips• Industry...

product image

CY7C68023 Picture
See larger image
SeekIC No. : 004320521 Detail

CY7C68023: Features: • High (480-Mbps) or full (12-Mbps) speed USB support• Both common NAND page sizes supported -512bytes-Up to 1 Gbit Capacity -2K bytes-Up to 8 Gbit Capacity• 8 chip enabl...

CY7C68023 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY7C68023
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High (480-Mbps) or full (12-Mbps) speed USB support
• Both common NAND page sizes supported
   -512bytes-Up to 1 Gbit Capacity
   -2K bytes-Up to 8 Gbit Capacity
• 8 chip enable pins
   -Up to 8 NAND Flash single-device chips
   -Up to 4 NAND Flash dual-device chips
• Industry standard ECC NAND Flash correction
   -1 bit per 256 correction
   -2 bit error detection
• Industry standard (SmartMedia) page management for
   wear leveling algorithm, bad block handling, and
   Physical to Logical management.
• Supports 8-bit NAND Flash interfaces
• Supports 30-ns, 50-ns, 100-ns NAND Flash timing
• Complies with USB Mass Storage Class Specification rev 1.0
• CY7C68024 complies with USB 2.0 Specification for
   Bus-Powered Devices (TID# 40460274)
• 43-mA Typical Active Current
• Space-saving and lead-free 56-QFN package (8 mm *8 mm)
• Support for board-level manufacturing test via USB interface
• 3.3V NAND Flash operation
• NAND Flash power management support


Pinout

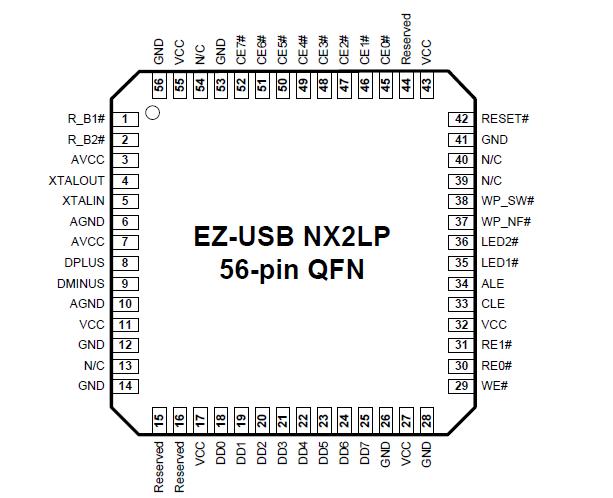

Connection Diagram


Specifications

Storage Temperature..................65°C to +150°C
Ambient Temperature with Power
Supplied  .......................... 0°C to +70°C
Supply Voltage to Ground Potential   ............0.5V to +4.0V
DC Input Voltage to Any Input Pin  .................. 5.25V
DC Voltage Applied to Outputs
in High-Z State  .................... 0.5V to VCC + 0.5V
Power Dissipation  ......................... 300 mW
Static Discharge Voltage ....................... 2000V
Max Output Current per IO port  ................... 10 mA


Description

The EZ-USB NX2LP (NX2LP),CY7C68023 implements a USB 2.0 NAND Flash controller. This controller adheres to the Mass Storage Class Bulk-Only Transport pecification. The USB port of the NX2LP,CY7C68023 is connected to a host computer directly or via the downstream port of a USB hub. Host software issues commands and data to the NX2LP and receives status and data from the NX2LP using standard USB protocol.

The NX2LP,CY7C68023 supports industry leading 8-bit NAND Flash interfaces and both common NAND page sizes of 512 and 2k bytes. Eight chip enable pins allow the NX2LP to be connected to up to eight single- or four dual-device NAND Flash chips.

Certain NX2LP,CY7C68023 features are configurable, enabling the NX2LP to meet the needs of different designs' requirements.
