CY8C24123A

Features: ·Powerful Harvard Architecture Processor·M8C Processor Speeds to 24 MHz·8x8 Multiply, 32-Bit Accumulate·Low Power at High Speed·2.4 to 5.25 V Operating Voltage·Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)·Industrial Temperature Range: -40°C to +85°C·Advanced Perip...

product image

CY8C24123A Picture
See larger image
SeekIC No. : 004320556 Detail

CY8C24123A: Features: ·Powerful Harvard Architecture Processor·M8C Processor Speeds to 24 MHz·8x8 Multiply, 32-Bit Accumulate·Low Power at High Speed·2.4 to 5.25 V Operating Voltage·Operating Voltages Down to 1...

CY8C24123A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY8C24123A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Powerful Harvard Architecture Processor
·M8C Processor Speeds to 24 MHz
·8x8 Multiply, 32-Bit Accumulate
·Low Power at High Speed
·2.4 to 5.25 V Operating Voltage
·Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)
·Industrial Temperature Range: -40°C to +85°C
·Advanced Peripherals (PSoC Blocks)
·6 Rail-to-Rail Analog PSoC Blocks Provide:
- Up to 14-Bit ADCs
- Up to 9-Bit DACs
- Programmable Gain Amplifiers
- Programmable Filters and Comparators
·4 Digital PSoC Blocks Provide:
- 8- to 32-Bit Timers, Counters, and PWMs
- CRC and PRS Modules
- Full-Duplex UART
- Multiple SPI™ Masters or Slaves
- Connectable to all GPIO Pins
·Complex Peripherals by Combining Blocks
·Precision, Programmable Clocking
·Internal ±2.5% 24/48 MHz Oscillator
·High-Accuracy 24 MHz with Optional 32 kHz Crystal and PLL
·Optional External Oscillator, up to 24 MHz
·Internal Oscillator for Watchdog and Sleep
·Flexible On-Chip Memory
·4K Bytes Flash Program Storage 50,000 Erase/Write Cycles
·256 Bytes SRAM Data Storage
·In-System Serial Programming (ISSP™)
·Partial Flash Updates
·Flexible Protection Modes
·EEPROM Emulation in Flash
·Programmable Pin Configurations
·25 mA Sink on all GPIO
·Pull up, Pull down, High Z, Strong, or Open Drain Drive Modes on all GPIO
·Up to 10 Analog Inputs on GPIO
·Two 30 mA Analog Outputs on GPIO
·Configurable Interrupt on all GPIO
·New CY8C24x23A PSoC Device
·Derived from the CY8C24x23 Device
·Low Power and Low Voltage (2.4V)
·Additional System Resources
·I2C™ Slave, Master, and Multi-Master to 400 kHz
·Watchdog and Sleep Timers
·User-Configurable Low Voltage Detection
·Integrated Supervisory Circuit
·On-Chip Precision Voltage Reference
·Complete Development Tools
·Free Development Software (PSoC™ Designer)
·Full-Featured, In-Circuit Emulator and
·Programmer
·Full Speed Emulation
·Complex Breakpoint Structure
·128K Bytes Trace Memory

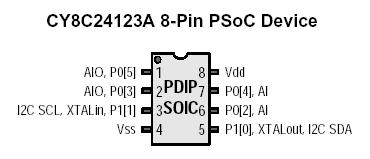

Pinout

Connection Diagram


Specifications

Symbol Description Min Typ Max Units Notes
TSTG Storage Temperature -55 +100 Higher storage temperatures will reduce data
retention time.
TA Ambient Temperature with Power Applied -40 +85
Vdd Supply Voltage on Vdd Relative to Vss -0.5 +6.0 V
VIO DC Input Voltage Vss- 0.5 Vdd + 0.5 V
VIOZ DC Voltage Applied to Tri-state Vss- 0.5 Vdd + 0.5 V
IMAIO Maximum Current into any Port Pin Configured as Analog
Driver		 -25 +50 mA
ESD Electro Static Discharge Voltage 2000 V Human Body Model ESD
LU Latch-up Current 200 mA
