Position: Home  > All Categories> Integrated Circuits (ICs) > D02-92LF

D02-92LF

Features: Frequency coverage:650 MHz to 3.0 GHzTypical insertion loss < 0.2 dB to 2.3 GHzTypical directivity > 23 dBSmall outline SC-88 (6 Lead SC-70)Built-in temperature compensating diodeLow cost for high-volume handset applicationsAvailable lead (Pb)-free MSL-2 @ 250 °C per JEDEC J-STD-02...

product image

D02-92LF Picture
See larger image
SeekIC No. : 004320857 Detail

D02-92LF: Features: Frequency coverage:650 MHz to 3.0 GHzTypical insertion loss < 0.2 dB to 2.3 GHzTypical directivity > 23 dBSmall outline SC-88 (6 Lead SC-70)Built-in temperature compensating diodeLow...

D02-92LF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
D02-92LF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Frequency coverage:650 MHz to 3.0 GHz
Typical insertion loss < 0.2 dB to 2.3 GHz
Typical directivity > 23 dB
Small outline SC-88 (6 Lead SC-70)
Built-in temperature compensating diode
Low cost for high-volume handset applications
Available lead (Pb)-free MSL-2 @ 250 °C per JEDEC J-STD-020


Pinout

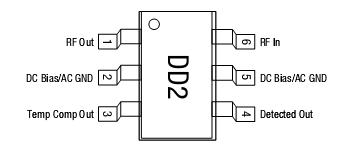

Connection Diagram


Specifications

Parameter

Frequency

Min.

Typ.

Max.

Unit

Detected Voltage

0.81.2 GHz
1.82.0 GHz

60
130

80
160

105
190

mV
mV

Insertion Loss

870920 MHz
1.71.8 GHz

0.10
0.20

0.20
0.30

dB
dB

Input Return Loss

0.81.2 GHz
1.22.0 GHz

30
25

22
20

dB
dB

Output Return Loss

0.81.2 GHz
1.22.0 GHz

30
25

22
20

dB
dB

Directivity

0.81.2 GHz
1.82.0 GHz

17
16

20
13

dB
dB

Schottky Noise Voltage (1 MHz Bandwidth)

RF Power Off

200



V

Schottky Diode DC Voltage

RF Power Off

510

mV

DC Offset Voltage

RF Power Off

-5

0

+5

mV

Video Resistance

RF Power Off

7,500




Description

The DD02-92 directional detector is an alternative to the DD01-92 with improved insertion loss and directivity with slightly lower sensitivity.The DD02-92  is designed for handset power monitor applications from 800 MHz to 3 GHz.It is packaged in the small footprint,SC-88 (6 lead SC-70) package.The DD02-92 incorporates a directional coupler and two GaAs Schottky diodes on a monolithic GaAs chip.By applying forward DC bias to both Schottky diodes, the DD02-92 may be conveniently temperature compensated.

The DD02-92 is characterized from 500 MHz to 3 GHz and generates a detected signal at 1.8 GHz of approximately 190 mV at 10 mW input power.Each Schottky diode is forward biased to approxi-mately 5 A.
