General Description
DAC8408 General Description
The DAC8408 is a monolithic quad 8-bit multiplying digital-to-analog CMOS converter. Each DAC has its own reference input, feedback resistor, and onboard data latches that feature read/write capability. The readback function serves as memory for those systems requiring self-diagnostics.
A common 8-bit TTL/CMOS compatible input port is used to load data into any of the four DAC data-latches. Control lines DS1, DS2, and A/B determine which DAC will accept data. Data loading is similar to that of a RAMs write cycle. Data can be read back onto the same data bus with control line R/W. The DAC8408 is bus compatible with most 8-bit microprocessors, including the 6800, 8080, 8085, and Z80. The DAC8408 oper-ates on a single +5 volt supply and dissipates less than 20 mW.
The DAC8408 is manufactured using PMI's highly stable, thin-film resistors on an advanced oxide-isolated, silicon-gate, CMOS process. PMI's improved latch-up resistant design eliminates the need for external protective Schottky diodes.
DAC8408 Maximum Ratings
(TA = +25°C, unless otherwise noted.)
VDD to IOUT 2A, IOUT 2B, IOUT 2C, IOUT 2D . . . . . 0 V, +7 V
VDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V, +7 V
IOUT 1A, IOUT 1B,
IOUT 1C, IOUT 1D to DGND . . . . . . . . . 0.3 V to VDD +0.3 V
RFBA, RFBB, RFBC, RFBD to IOUT . . . . . . . . . . . . . . . . . ±25 V
IOUT 2A, IOUT 2B,
IOUT 2C, IOUT 2D to DGND . . . . . . . . 0.3 V to VDD + 0.3 V
DB0 through DB7 to DGND . . . . . . . . 0.3 V to VDD + 0.3 V
Control Logic
Input Voltage to DGND . . . . . . . . . . 0.3 V + VDD + 0.3 V
VREFA, VREFB, VREFC, VREFD to
IOUT 2A, IOUT 2B, IOUT 2C, IOUT 2D . . .. . . . . . . . ±25 V
Operating Temperature Range
Commercial Grade (GP) . . . . . . . . . . . . . 0°C to +70°C
Industrial Grade (ET, FT, FP, FPC, FS) . 40°C to +85°C
Military Grade (AT, BT) . . . . . . . . . . . 55°C to +125°C
Junction Temperature . . . . . . . . . . . .. . . . . . . . . +150°C
Storage Temperature . . . . . . . . . .. . .65°C to +150°C
Lead Temperature (Soldering, 10 sec) .. . . . . . . +300°C
VDD to IOUT 2A, IOUT 2B, IOUT 2C, IOUT 2D . . . . . 0 V, +7 V
VDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V, +7 V
IOUT 1A, IOUT 1B,
IOUT 1C, IOUT 1D to DGND . . . . . . . . . 0.3 V to VDD +0.3 V
RFBA, RFBB, RFBC, RFBD to IOUT . . . . . . . . . . . . . . . . . ±25 V
IOUT 2A, IOUT 2B,
IOUT 2C, IOUT 2D to DGND . . . . . . . . 0.3 V to VDD + 0.3 V
DB0 through DB7 to DGND . . . . . . . . 0.3 V to VDD + 0.3 V
Control Logic
Input Voltage to DGND . . . . . . . . . . 0.3 V + VDD + 0.3 V
VREFA, VREFB, VREFC, VREFD to
IOUT 2A, IOUT 2B, IOUT 2C, IOUT 2D . . .. . . . . . . . ±25 V
Operating Temperature Range
Commercial Grade (GP) . . . . . . . . . . . . . 0°C to +70°C
Industrial Grade (ET, FT, FP, FPC, FS) . 40°C to +85°C
Military Grade (AT, BT) . . . . . . . . . . . 55°C to +125°C
Junction Temperature . . . . . . . . . . . .. . . . . . . . . +150°C
Storage Temperature . . . . . . . . . .. . .65°C to +150°C
Lead Temperature (Soldering, 10 sec) .. . . . . . . +300°C
DAC8408 Features
*Four DACs in a 28 Pin, 0.6 Inch Wide DIP or 28-Pin JEDEC
Plastic Chip Carrier
*61/4 LSB Endpoint Linearity
*Guaranteed Monotonic
*DACs Matched to Within 1%
*Microprocessor Compatible
*Read/Write Capability (with Memory)
*TTL/CMOS Compatible
*Four-Quadrant Multiplication
*Single-Supply Operation (+5 V)
*Low Power Consumption
*Latch-Up Resistant
*Available In Die Form
Plastic Chip Carrier
*61/4 LSB Endpoint Linearity
*Guaranteed Monotonic
*DACs Matched to Within 1%
*Microprocessor Compatible
*Read/Write Capability (with Memory)
*TTL/CMOS Compatible
*Four-Quadrant Multiplication
*Single-Supply Operation (+5 V)
*Low Power Consumption
*Latch-Up Resistant
*Available In Die Form
DAC8408 Typical Application
Voltage Set Points in Automatic Test Equipment
Systems Requiring Data Access for Self-Diagnostics
Industrial Automation
Multichannel Microprocessor-Controlled Systems
Digitally Controlled Op Amp Offset Adjustment
Process Control
Digital Attenuators
Systems Requiring Data Access for Self-Diagnostics
Industrial Automation
Multichannel Microprocessor-Controlled Systems
Digitally Controlled Op Amp Offset Adjustment
Process Control
Digital Attenuators

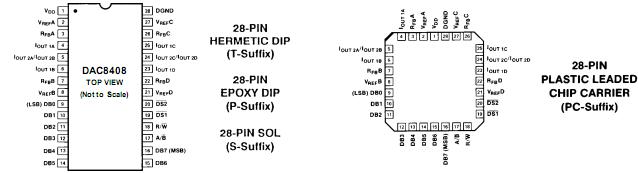

DAC8408 Connection Diagram
DAC8408
