DAC8811

Features:

• ± 0.5 LSB DNL
• 16-Bit Monotonic
• ± 1 LSB INL
• Low Noise: 12 nV/ Hz
• Low Power: I DD = 2 µ A
• +2.7 V to +5.5 V Analog Power Supply
• 2 mA Full-Scale Current ± 20%,
with V REF = 10 V
• 50-MHz Serial Interface
• 0.5 µ s Settling Time
• 4-Quadrant Multiplying Reference
• Reference Bandwidth: 10 MHz
• ± 10 V Reference Input
• Reference Dynamics: -105 THD
• Tiny 8-Lead 3 x 3 mm SON and 3 x 5 mm
MSOP Packages
• Industry-Standard Pin Configuration


Application

• Automatic Test Equipment
• Instrumentation
• Digitally Controlled Calibration
• Industrial Control PLCs

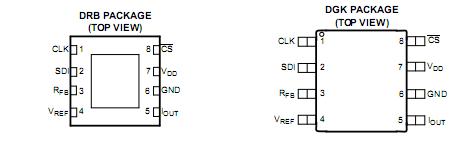

Pinout




Specifications

	DAC8811	UNIT
V DD to GND	-0.3 to +7	V
Digital input voltage to GND	-0.3 to +V DD + 0.3	V
V (I OUT ) to GND	-0.3 to +V DD + 0.3	V
Operating temperature range	-40 to +105	° C
Storage temperature range	-65 to +150	° C
Junction temperature range (T J max)	+125	° C
Power dissipation	(T J max - T A ) / R JA
Thermal impedance, R JA	55	° C/W
Lead temperature, soldering	215	° C
Lead temperature, soldering	220	° C
ESD rating, HBM	1500	V
ESD rating, CDM	1000	V

Description

The DAC8811 multiplying digital-to-analog converter (DAC) is designed to operate from a single 2.7-V to 5.5-V supply.

The applied external reference input voltage V REF determines the full-scale output current. An internal feedback resistor (R FB ) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier.

A serial data interface offers high-speed, three-wire microcontroller-compatible inputs using data-in (SDI), clock (CLK), and chip-select ( CS ).

The DAC8811 is packaged in space-saving 8-lead SON and MSOP packages.
