DAC8820

Features: ` ±0.5 LSB DNL ` ±1 LSB INL ` 16-Bit Monotonic ` Low Noise: 10 nV/Hz ` Low Power: IDD = 2 A` Analog Power Supply: +2.7 V to +5.5 V` 1.66 mA Full-Scale Current, with VREF = 10 V` Settling Time: 0.5 s` 4-Quadrant Multiplying Referenc` Reference Bandwidth: 8 MHz` Reference Input: ±15 V` Ref...

product image

DAC8820 Picture
See larger image
SeekIC No. : 004323840 Detail

DAC8820: Features: ` ±0.5 LSB DNL ` ±1 LSB INL ` 16-Bit Monotonic ` Low Noise: 10 nV/Hz ` Low Power: IDD = 2 A` Analog Power Supply: +2.7 V to +5.5 V` 1.66 mA Full-Scale Current, with VREF = 10 V` Settling T...

DAC8820 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DAC8820
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` ±0.5 LSB DNL
` ±1 LSB INL
` 16-Bit Monotonic
` Low Noise: 10 nV/Hz
` Low Power: IDD = 2 A
` Analog Power Supply: +2.7 V to +5.5 V
` 1.66 mA Full-Scale Current, with VREF = 10 V
` Settling Time: 0.5 s
` 4-Quadrant Multiplying Referenc
` Reference Bandwidth: 8 MHz
` Reference Input: ±15 V
` Reference Dynamics: 105 THD
` SSOP-28 Package
` Industry-Standard Pin Configuration



Application

· Automatic Test Equipment
· Instrumentation
· Digitally Controlled Calibration
· Industrial Control PLCs


Pinout

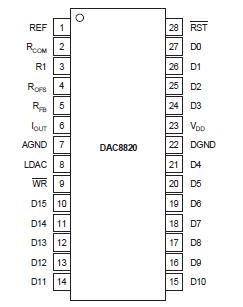

Connection Diagram


Specifications


DAC8820
UNIT
VDD to GND
0.3 to +7
V
Digital input voltage to GND
0.3 to +VDD + 0.3
V
V (IOUT) to GND
0.3 to +VDD + 0.3
V
REF, ROFS, RFB, R1, RCOM to AGND, DGND
±25
V
Operating temperature range
40 to +85
Storage temperature range
65 to +150
Junction temperature range (TJ max)
+125
Power dissipation
(TJ max TA) / RJA
W
Thermal impedance, RJA
/W
ESD rating:
55
Human Body Model (HBM)
4000
V
Charged Device Model (CDM)
1000
V
(1) Stresses above those listed under absolute maximum ratings may cause permanent damage to the device.
     Exposure to absolute maximum conditions for extended periods may affect device reliability.


Description

The DAC8820, a multiplying digital-to-analog converter (DAC), is designed to operate from a single 2.7 V to 5.5 V supply.

The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external, current-to-voltage (I/V) precision amplifier.

A parallel interface offers high-speedcommunications. The DAC8820 is packaged in a space-saving SSOP-28 package and has an industry-standard pinout.
