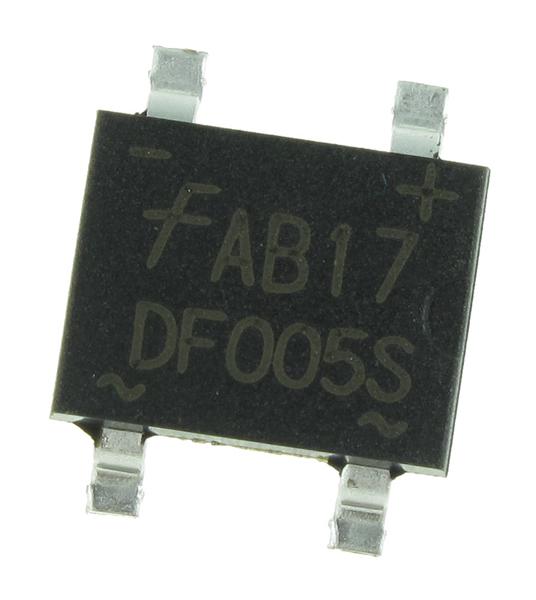

DF005S

Product : Single Phase Bridge
Maximum Operating Temperature : + 150 C
Packaging : Reel
Forward Continuous Current : 1.5 A
Max Surge Current : 50 A
Forward Voltage Drop : 1.1 V
Power Dissipation : 3.1 W
Height : 3.3 mm
Maximum Reverse Leakage Current : 50 uA
Length : 8.5 mm
Width : 6.5 mm
Package / Case : SDIP-4
Mounting Style : SMD/SMT
Peak Reverse Voltage : 50 V
Maximum RMS Reverse Voltage : 35 V


Features:

Plastic package has Underwriters Laboratory Flammability Classification 94V-0
This series is UL recognized under Component Index, file number E54214
Glass passivated chip junctions
High surge overload rating-50 amperes peak
Ideal for printed circuit boards
High temperature soldering guaranteed:
260/10 seconds at 5 lbs.(2.3kg) tensio




Specifications

	SYMBOLS	DF 005M	DF 01M	DF 02M	DF 04M	DF 06M	DF 08M	DF 10M	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC blocking voltage	VDC	50	100	200	400	600	800	1000	Volts
Maximum average forward output rectified current at TA=40C	I(AV)	1.0							Amp
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method)	IFSM	50.0							Amps
Rating for fusing (t < 8.3ms)	I2t	10.0							A2sec
Maximum instantaneous forward voltage drop per leg at 1.0A	VF	1.1							Volts
Maximum reverse current TA =25 at rated DC blocking voltage per leg TA =125C	IR	5.0 500.0							A
Typical junction capacitance per leg (NOTE 1)	CJ	25.0							pF
Typical thermal resistance per leg (NOTE 2)	RJA RJL	40.0 15.0							/W
Operating junction and storage temperature range	TJ,TSTG	-55 to +150

Part Number	DF005S
Total Capacitance CT (pF)	25
Max Average Rectified Current IO (A)	1
Peak Repetitive Reverse Voltage VRRM (V)	50
Peak Forward Surge Current IFSM (A)	50
Forward Voltage Drop VF (V)	1.1
Max Reverse Current IR (µA)	10

Parameters:

Technical/Catalog Information	DF005S
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Single Phase
Package / Case	4-SDIP
Packaging	Digi-Reel?
Reverse Recovery Time (trr)	-
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - DC Forward (If)	1.5A
Voltage - Peak Reverse (Max)	50V
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DF005S DF005S DF005SDKR ND DF005SDKRND DF005SDKR
