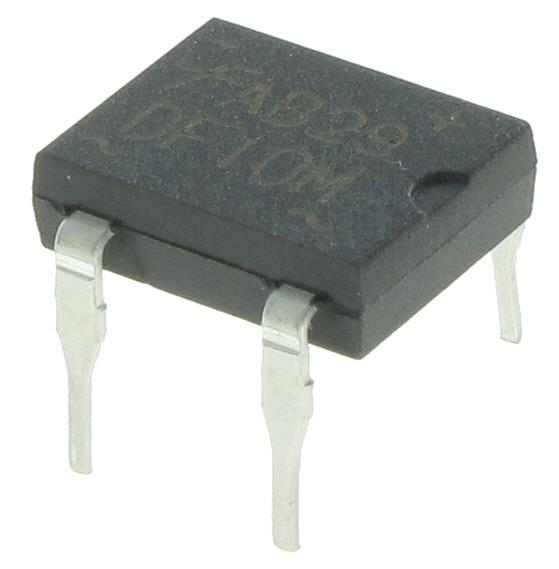

DF10M Product Image

DF1 Series Datasheet download

Five Points

Part Number: DF10M



MFG: N/A

Package Cooled: NA/

D/C: 09+



Urgent Purchase

DF10M Maximum Ratings

Characteristic





Symbol

DF
005M

DF
01M

DF
02M

DF
04M

DF
06M

DF
08M

DF
10M

Unit

Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage

VRMM
VRWM
VR

50

100

200

400

600

80

1000

V

RMS Reverse Voltage

VRMS

35

70

140

270

420

580

700

V

Average Rectified Output Current
@ TA = 40°C

IO

1.0

A

Non-Repetitive Peak Forward SurgeCurrent, 8.3 ms
single half-sine-wave superimposed on rated load(JEDEC method)

IFSM

50

A

Forward Voltage (per element)
@ IF = 1.0 A

VFM

1.1

V

Peak Reverse Current @ TA = 25°C
at Rated DC Blocking Voltage (per element)
@ TA = 125°C

IRM

10
500

A

I2t Rating for Fusing (t<8.3ms)

I2t

10.4

A2s

Typical Junction Capacitance per element (Note 1)

Cj

25

pF

Typical Thermal Resistance, Junction to Ambient (Note 2)

R JA

40

°C/W

Operating and Storage Temperature Range

Tj, TSTG

-65 to +150

°C

DF10M Features

 Glass Passivated Die Construction
Diffused Junction
Low Forward Voltage Drop, High Current Capability
Surge Overload Rating to 50A Peak
Designed for Printed Circuit Board Applications
Plastic Material - UL Flammability Classification 94V-0
UL Listed Under Recognized Component Index, File Number E94661

DF10M datasheet

DF10M
PDF/DataSheet Download

Find DF10M Suppliers

  • ·DF10
  • LRC [Leshan Radio Company]
  • 1.0A DIP & SMD BRIDGE RECTIFIERS
  • 58860 KB
  • DF10 Datasheet Download
  • ·DF100
  • ETC [ETC]
  • Norfolk Amateur Radio Club DF100 direction finder project for “Foxhunting”
  • 66670 KB
  • DF100 Datasheet Download
  • ·DF100AA120
  • SANREX [SanRex Corporation]
  • DIODE(THREE PHASES BRIDGE TYPE)
  • 275001 KB
  • DF100AA120 Datasheet Download
  • ·DF100AA160
  • SANREX [SanRex Corporation]
  • DIODE(THREE PHASES BRIDGE TYPE)
  • 275001 KB
  • DF100AA160 Datasheet Download
  • ·DF100BA40
  • SANREX [SanRex Corporation]
  • DIODE(THREE PHASES BRIDGE TYPE)
  • 107971 KB
  • DF100BA40 Datasheet Download
  • ·DF100BA80
  • SANREX [SanRex Corporation]
  • DIODE(THREE PHASES BRIDGE TYPE)
  • 107971 KB
  • DF100BA80 Datasheet Download
  • ·DF100HB160
  • SANREX [SanRex Corporation]
  • DIODE MODULE
  • 104151 KB
  • DF100HB160 Datasheet Download
  • ·DF100LA
  • SANREX [SanRex Corporation]
  • DIODE(THREE PHASES BRIDGE TYPE)
  • 103416 KB
  • DF100LA Datasheet Download

Related Part Number

DF10M Relative Products

  • DF10-G

    DF10-G

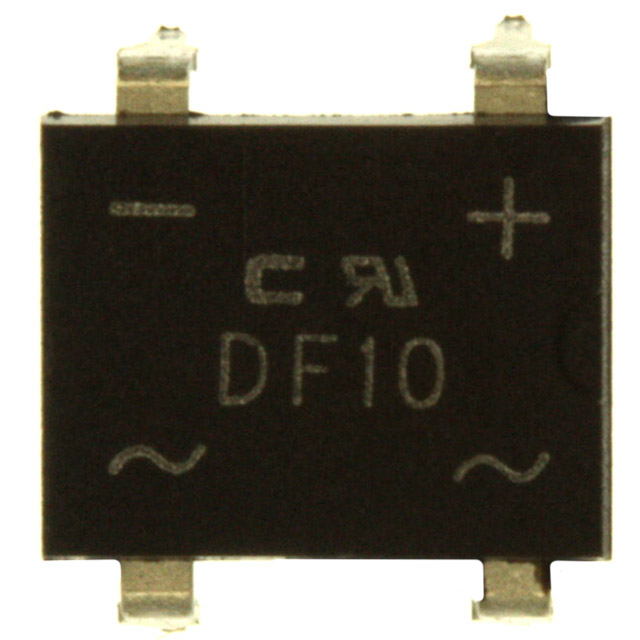

    RECT BRIDGE GPP 1000V 1A DF

  • DF1084

    DF1084

    The DF1084 series of adjustable and fixed voltage regulators are designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of DF1084 is guaranteed maximum 1.5V at maximum output current, decreasing at l...

  • DF10-31S-2DSA(62)

    DF10-31S-2DSA(62)

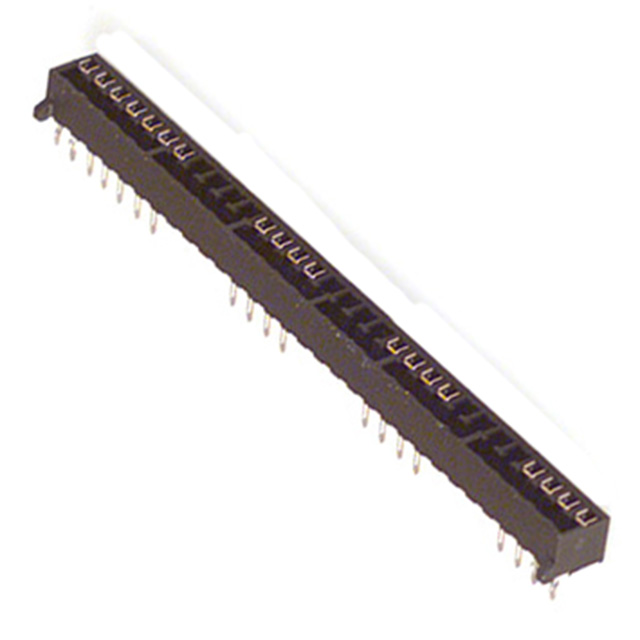

    CONNECTOR 31 PIN FEMALE STRAIGHT
