DG200A General Description
DG200A Maximum Ratings
V+ to V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 V
GND to V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
Digital Inputsa, VS, VD . . . . . . . . . . . . . . . . (V) 2 V to (V+) +2 V or
30 mA, whichever occurs first
Current (Any Terminal) Continuous . .. . . . . . . . . . . . . . . . . . . . 30 mA
Current S or D
(Pulsed at 1 ms, 10% Duty Cycle Max) . . . . . . . . . . . . . . . . . . 100 mA
Storage Temperature (AX, BX Suffix) . . . . . . . . . . . . . . . 65 to 150
(CJ Suffix) . . . . . . . . . . . . . . . . . . 65 to 125
Power Dissipation (Package)b
10-Pin Metal Canc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450 mW
14-Pin CerDIPd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 825 mW
14-Pin Plastic DIPe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470 mW
Notes:
a. Signals on SX, DX, or INX exceeding V+ or V will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate 6 mW/ above 75
d. Derate 11 mW/ above 75
e. Derate 6.5 mW/ above 25
DG200A Typical Application
Servo Control Switching
Programmable Gain Amplifiers
Audio Switching
Programmable Filters

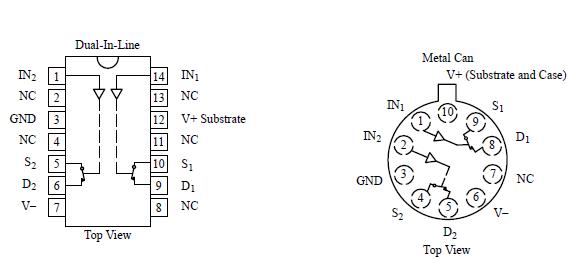

DG200A Connection Diagram
