DG2741

Features: Low Voltage Operation (1.6 V to 3.6 V)Low On-Resistance - rDS(on):0.8 @ 2.7 VHigh Current Handling Capacity:150-mA ContinuousOff-Isolation: −56 dB @ 1 MHzFast Switching: 25 ns tONLow Charge Injection-QINJ: 5.8 pCLow Power Consumption:<1 WESD Protection >2,000 VApplicationMixed Sig...

product image

DG2741 Picture
See larger image
SeekIC No. : 004326128 Detail

DG2741: Features: Low Voltage Operation (1.6 V to 3.6 V)Low On-Resistance - rDS(on):0.8 @ 2.7 VHigh Current Handling Capacity:150-mA ContinuousOff-Isolation: −56 dB @ 1 MHzFast Switching: 25 ns tONLo...

DG2741 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DG2741
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low Voltage Operation (1.6 V to 3.6 V)
Low On-Resistance - rDS(on):0.8 @ 2.7 V
High Current Handling Capacity:150-mA Continuous
Off-Isolation: −56 dB @ 1 MHz
Fast Switching: 25 ns tON
Low Charge Injection-QINJ: 5.8 pC
Low Power Consumption:<1 W
ESD Protection >2,000 V




Application

Mixed Signal Routing
Portable and Battery Operated Systems
Low Voltage Data Acquisition
Modems
PCMCIA Cards

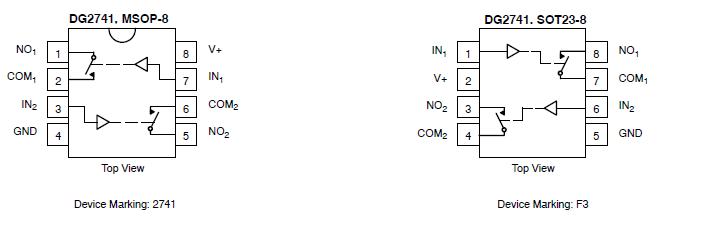

Pinout

Connection Diagram




Specifications

Reference to GND
V+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3 to +6 V
IN, COM, NC, NOa . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . -0.3 to (V+ + 0.3 V)
Continuous Current (Any terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . ±200 mA
Peak Current . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . .±300 mA
(Pulsed at 1 ms, 10% duty cycle)
Storage Temperature (D Suffix) . . . . . . . .. . . . . . . . . . . . . . . . . -65 to 150°C
Power Dissipation (Packages)b
MSOP-8c . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 mW
Notes:
a. Signals on NC, NO, or COM or IN exceeding V+ will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC Board.
c. Derate3.1 mW/above 70




Description

The DG2741/2742/2743 are low voltage, single supply, dual SPST analog switches. Designed for high performance switching of analog signals, the DG2741/2742/2743 provide low on-resistance (0.8 @ +2.7 V), fast speed (tON, tOFF @ 35 ns and 33 ns) and the ability to handle signals over the entire analog voltage range.

When operated on a +3-V supply, control pins are compatible with 1.8-V digital logic. Additionally,on-resistance flatness and matching (0.18 and 0.08 , respectively) offer high accuracy between channels.
