DG429
Suppliers
DataSheet
General Description

Purchase DG429, In-stock DG429 From SeekIC.

MFG:AD Package Cooled:PLCC20 D/C:07/08+

DG4 Series Datasheet download

Five Points

Part Number: DG429

MFG: AD

Package Cooled: PLCC20

D/C: 07/08+

Description: The DG428/DG429 analog multiplexers have on-chip address and control latches to simplify design in microprocessor based...

DG429 General Description

The DG428/DG429 analog multiplexers have on-chip address and control latches to simplify design in microprocessor based applications. Break-before-make switching action protects against momentary crosstalk of adjacent input signals.

The DG428 selects one of eight single-ended inputs to a common output, while the DG429 selects one of four differential inputs to a common differential output.

DG429 Maximum Ratings

Voltage Referenced to V
V₊ . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 V
GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
Digital Inputsa, V_S, V_D . . . . . .. . . . . . . . . . (V) 2 V to (V₊) +2 V or
30 mA, whichever occurs first
Current (Any Terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Peak Current, S or D
(Pulsed at 1 ms, 10% Duty Cycle Max) . . . . . . . . . . . . . . . . . 100 mA
Storage Temperature (AK Suffix) . . . . . . . . . . . . . . . . . 65 to 150
(DJ, DN Suffix) . . . . . . . . . . . . . . 65 to 125
Power Dissipation (Package)^b18-Pin Plastic DIPc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470 mW
18-Pin CerDIPd . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . 900 mW
20-Pin PLCCf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800 mW
28-Pin Widebody SOICf . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450 mW
Notes:
a. Signals on SX, DX or INX exceeding V₊or V will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads soldered or welded to PC board.
c. Derate 6.3 mW/ above 75.
d. Derate 12 mW/ above 75.
e. Derate 10 mW/ above 75.
f. Derate 6 mW/above 75.

DG429 Features

low rDS(on): 55
Low Charge Injection: 1 pC
On-Board TTL Compatible Address Latches
High Speed-tTRANS: 160 ns
Break-Before-Make
Low Power Consumption: 0.3 mW

DG429 Typical Application

Data Acquisition Systems
Automatic Test Equipment
Avionics and Military Systems
Communication Systems
Microprocessor-Controlled Analog Systems
Medical Instrumentation

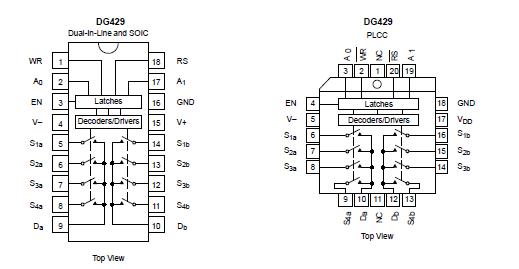

DG429 Connection Diagram

DG429 datasheet

DG429
