MFG:SOP Package Cooled:MAXIM D/C:01+
MFG: SOP
Package Cooled: MAXIM
D/C: 01+
Description: Maxim's DG508A and DG509A are monolithic CMOS analog multiplexers (muxes): the DG508A is a single 8-channel (1-of-8)...

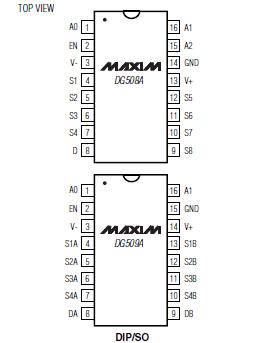

Maxim's DG508A and DG509A are monolithic CMOS analog multiplexers (muxes): the DG508A is a single 8-channel (1-of-8) mux, and the DG509A is a differential 4-channel (2-of-8) mux.
Both devices guarantee break-before-make switching. Maxim guarantees these muxes will not latch up if the power supplies are turned off with the input signals still present. Maxim also guarantees continuous operation when these devices are powered by supplies ranging from ±4.5V to ±18V.
Voltage Referenced to V-
V+........................................................................................+44V
GND..................................................................................... +25V
Digital Inputs, VS and VD (Note 1)........................-2V to (V+ + 2V)
or 20mA, whichever occurs first
Current (any terminal, except S or D) ..................................30mA
Continuous Current, S or D ..................................................20mA
Peak Current, S or D (pulsed at 1ms, 10% duty cycle max) ..40mA
Continuous Power Dissipation (TA = +70°C)
Plastic DIP (derate 10.53mW/°C above +70°C) ..............842mW
QFN (derate 19.2mW/°C above +70°C) ..........................1538mW
Narrow SO (derate 8.70mWI°C above +70°C) ..................696mW
Wide SO (derate 9.52mW/°C above +70°C).......................762mW
CERDIP (derate 10.00mW/°C above +70°C).......................800mW
Operating Temperature Ranges:
DG50_ACJ/CWE/CGE .................................................0°C to +70°C
DG50_ABK ..............................................................-20°C to +85°C
DGS0_ADJ/DY/EWE/EGE .........................................-40°C to +85°C
DG50_AAK ............................................................-55°C to +125°C
Storage Temperature Range ................................-65°C to +150°C
Lead Temperature (soldering, 10s) ......................................+300°C
DG508A
PDF/DataSheet Download
