DIMD10A-7

Transistors Switching (Resistor Biased) PREBIASED COMP.

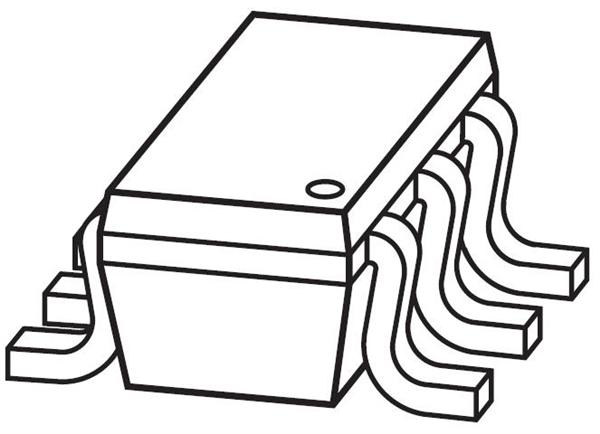

product image

DIMD10A-7 Picture
See larger image
SeekIC No. : 00221987 Detail

DIMD10A-7: Transistors Switching (Resistor Biased) PREBIASED COMP.

DIMD10A-7 Data Sheet

floor Price/Ceiling Price

US $ .13~.27 / Piece | Get Latest Price
Part Number:
DIMD10A-7
Mfg:
Diodes Inc.
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.27
  • $.22
  • $.16
  • $.13
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Dual Transistor Polarity : NPN/PNP
Typical Input Resistor : 10 KOhms, 0.1 KOhms Mounting Style : SMD/SMT
Package / Case : SOT-363-6 Collector- Emitter Voltage VCEO Max : 50 V
Peak DC Collector Current : 100 mA Maximum Operating Temperature : + 150 C
Packaging : Reel

Description

Typical Resistor Ratio :
Maximum Operating Frequency :
Continuous Collector Current :
Power Dissipation :
Maximum Operating Temperature : + 150 C
Packaging : Reel
Mounting Style : SMD/SMT
Collector- Emitter Voltage VCEO Max : 50 V
Configuration : Dual
Peak DC Collector Current : 100 mA
Transistor Polarity : NPN/PNP
Package / Case : SOT-363-6
Typical Input Resistor : 10 KOhms, 0.1 KOhms


Parameters:

Technical/Catalog InformationDIMD10A-7
VendorDiodes Inc
CategoryDiscrete Semiconductor Products
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)500mA, 100mA
Power - Max300mW
Resistor - Base (R1) (Ohms)100, 10K
Resistor - Emitter Base (R2) (Ohms)10K
Vce Saturation (Max) @ Ib, Ic300mV @ 5mA, 100mA / 300mV @ 1mA, 10mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce68, 100 @ 1mA, 5V
Frequency - Transistion200MHz, 250MHz
Mounting TypeSurface Mount
Package / CaseSC-74R
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DIMD10A 7
DIMD10A7
